Danfoss (Weatherhead)

Steel SAE 37°JIC Male Bulkhead Connector

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D. IN.
OKCancelClear All
THREAD P (NPTF)
OKCancelClear All
THREAD T
OKCancelClear All

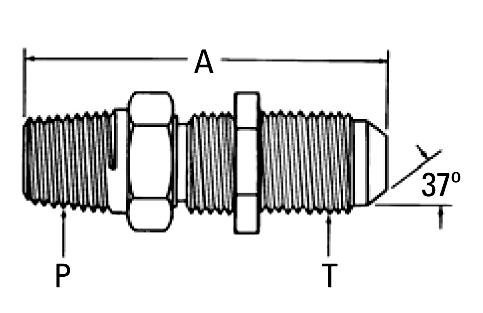

A IN.
OKCancelClear All
2240-2-4S
.25
1/8–27
7/16–20
1.84
2240-4-4S
.25
1/4–18
7/16–20
2.03
2240-4-6S
.38
1/4–18
9/16–18
2.12
2240-6-8S
.50
3/8–18
3/4–16
2.36
2240-12-12S
.75
3/4–14
1-1/16–12
2.92
2240-16-16S
1.00
1–11-1/2
5-5/16–12
3.11
Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
