Danfoss (Weatherhead)

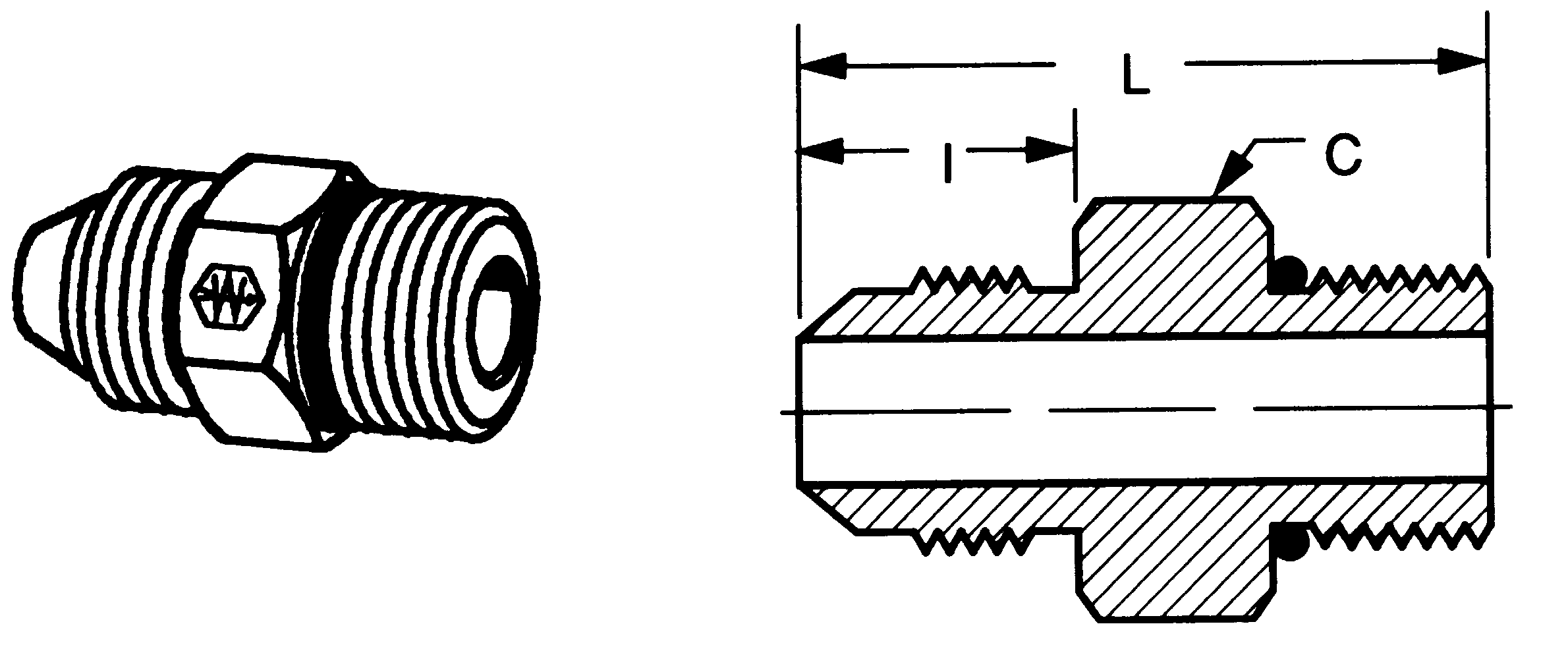

Steel SAE 37°JIC Straight Thread O-Ring Connector

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All
HEX C
OKCancelClear All
I
OKCancelClear All
L
OKCancelClear All
C5315X2
1/8
1/8
7/16
.45
1.06
C5315X3
3/16
3/16
1/2
.48
1.10
C5315X4
1/4
1/4
9/16
.55
1.23
C5315X4X5
1/4
5/16
5/8
.55
1.23
C5315X4X6
1/4
3/8
11/16
.55
1.29
C5315X4X8
1/4
1/2
7/8
.55
1.37
C5315X5X4
5/16
1/4
9/16
.55
1.23
C5315X5
5/16
5/16
5/8
.55
1.23
C5315X5X6
5/16
3/8
11/16
.55
1.29
C5315X6X4
3/8
1/4
11/16
.56
1.27
C5315X6X5
3/8
5/16
11/16
.56
1.27
C5315X6
3/8
3/8
11/16
.56
1.30
C5315X6X8
3/8
1/2
7/8
.56
1.38
C5315X6X10
3/8
5/8
1
.56
1.50
C5315X8X6
1/2
3/8
13/16
.66
1.44
C5315X8
1/2
1/2
7/8
.66
1.48
C5315X8X10
1/2
5/8
1
.66
1.60
C5315X8X12
1/2
3/4
1-1/4
.66
1.76
C5315X10X6
5/8
3/8
15/16
.75
1.69
C5315X10X8
5/8
1/2
15/16
.76
1.64
C5315X10
5/8
5/8
1
.76
1.70
C5315X10X12
5/8
3/4
1-1/4
.76
1.86
C5315X10X16
5/8
1
1-1/2
.76
1.89
C5315X12X8
3/4
1/2
1-1/8
.86
1.94
C5315X12X10
3/4
5/8
1-1/8
.86
1.88
C5315X12
3/4
3/4
1-1/4
.86
1.97
C5315X12X14
3/4
7/8
1-3/8
.86
1.96
C5315X12X16
3/4
1
1-1/2
.86
1.99
C5315X12X20
3/4
1-1/4
1-7/8
.86
2.08
C5315X14
7/8
7/8
1-3/8
.89
1.99
C5315X16X10
1
5/8
1-3/8
.91
2.07
C5315X16X12
1
3/4
1-3/8
.91
2.04
C5315X16
1
1
1-1/2
.91
2.04
C5315X16X20
1
1-1/4
1-7/8
.91
2.12
C5315X20X16
1-1/4
1
1-11/16
.96
2.33
C5315X20
1-1/4
1-1/4
1-7/8
.96
2.17
C5315X20X24
1-1/4
1-1/2
2-1/8
.96
2.24
C5315X24X20
1-1/2
1-1/4
2
1.08
2.58
C5315X24
1-1/2
1-1/2
2-1/8
1.08
2.37
C5315X24X32
1-1/2
2
2-3/4
1.08
2.53
C5315X32X24
2
1-1/2
2-5/8
1.33
2.81
C5315X32
2
2
2-3/4
1.33
2.78

Stainless Steel No. 5327X (Ref. SAE No. 070120) (Ref. MS51525)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
