Danfoss (Weatherhead)

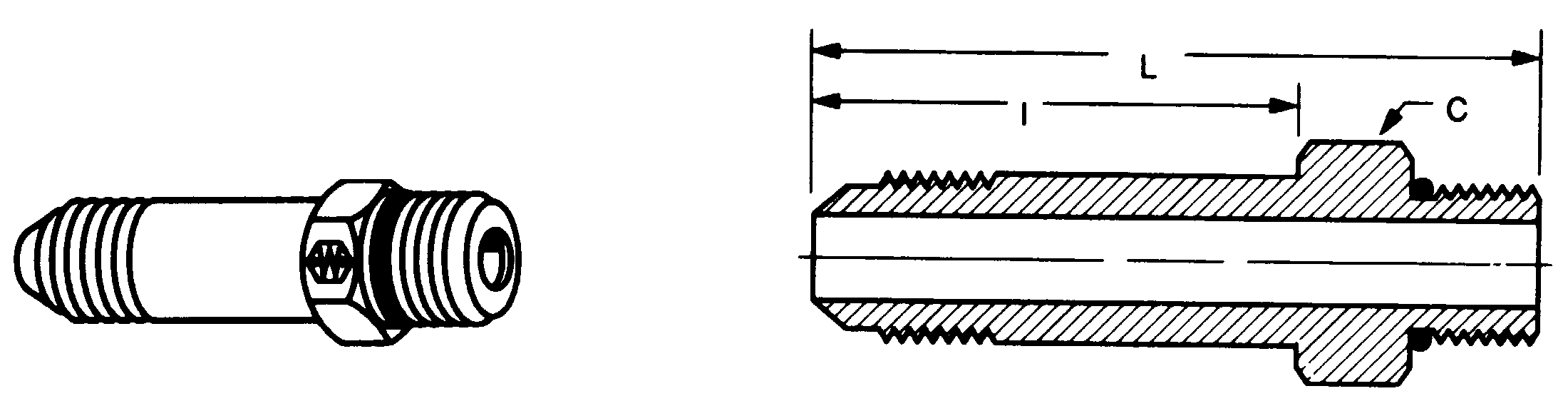

Steel SAE 37°JIC Straight Thread O-Ring Extended Connector

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All
HEX C
OKCancelClear All
I
OKCancelClear All
L
OKCancelClear All
C5316X4
14
1/4
9/16
1.39
2.08
C5316X6
3/8
3/8
11/16
1.56
2.31
C5316X8X6
1/2
3/8
7/8
1.56
2.38
C5316X8
1/2
1/2
7/8
1.88
2.70
C5316X10
5/8
5/8
1
2.09
3.04
C5316X12
3/4
3/4
1-1/4
2.50
3.61
C5316X16
1
1
1-1/2
2.84
3.98
C5316X20
1-1/4
1-1/4
1-7/8
3.47
4.69

(Ref. SAE No. 070122) (Ref. MS51526)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
