Danfoss (Weatherhead)

Steel SAE 37°JIC Swivel Nut 45° Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All

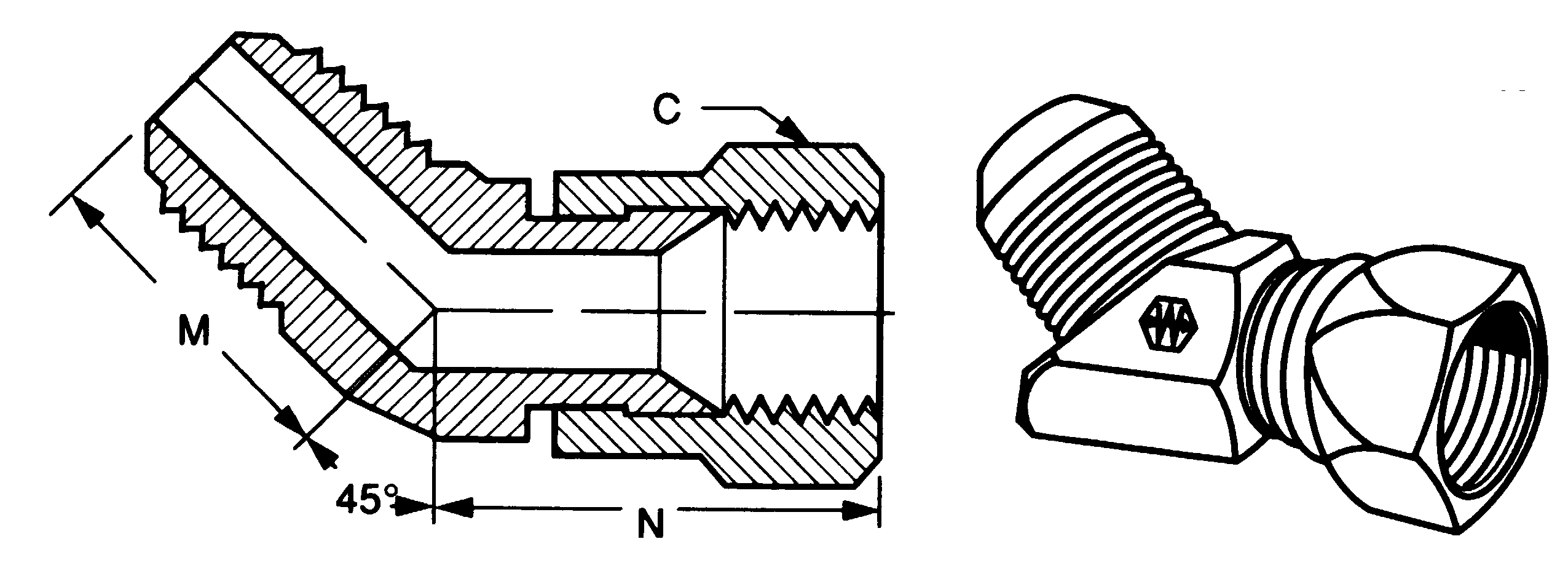

HEX C
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
ACROSS FLATS
OKCancelClear All
C5356X4
1/4
9/16
.72
.94
7/16
C5356X6
3/8
11/16
.83
1.12
9/16
C5356X8
1/2
7/8
.98
1.28
3/4
C5356X10
5/8
1
1.11
1.44
7/8
C5356X12
3/4
1-1/4
1.28
1.50
1-1/16
C5356X14
7/8
1-3/8
1.39
1.62
1-5/16
C5356X16
1
1-1/2
1.47
1.75
1-5/16
C5356X24
1-1/2
2-1/4
1.78
2.25
1-7/8
TF5356X4
1/4
9/16
.72
.94
1/2
TF5356X6
3/8
11/16
.83
1.12
5/8
TF5356X8
1/2
7/8
.98
1.28
13/16
TF5356X10
5/8
1
1.11
1.44
15/16
TF5356X12
3/4
1-1/4
1.28
1.50
1-1/8
TF5356X16
1
1-1/2
1.47
1.75
1-3/8
TF5356X20
1-1/4
2
1.59
2.03
1-3/4
TF5356X24
1-1/2
2-1/4
1.78
2.25
2

Stainless Steel No. 5368X (Ref. SAE No. 070321) (Ref. MS51522)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
