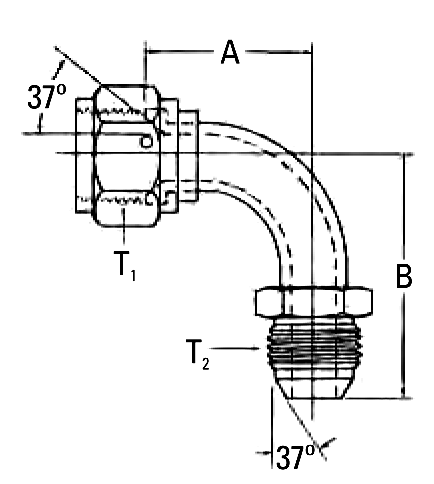

Steel SAE 90° Sweep Elbow - Suitable for Pressures through 4-Wire Hose

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D. IN.
OKCancelClear All
THREAD T1
OKCancelClear All
THREAD T2
OKCancelClear All
A IN.
OKCancelClear All
B IN.
OKCancelClear All
FF5163-0808S
.50
3/4–16
3/4–16
1.87
2.16
FF5163-1212S
.75
1-1/16–12
1-1/16–12
2.35
2.81
FF5163-1616S
1.00
1-5/16–12
1-5/16–12
3.04
2.81
FF5163-2020S
1.25
1-5/8–12
1-5/8–12
3.40
3.71
FF5163-2424S
1.50
1-7/8–12
1-7/8–12
3.95
4.33
Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
