Danfoss (Weatherhead)

Steel SAE JIC Male Pipe/ 37° Flare Tee/ Female

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

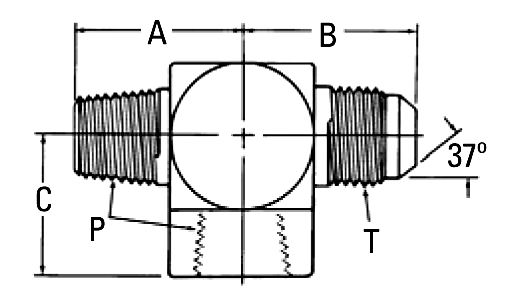

Part Number
TUBE O.D. IN.
OKCancelClear All
THREAD P (NPTF)
OKCancelClear All
THREAD T
OKCancelClear All
A IN.
OKCancelClear All
B IN.
OKCancelClear All
C IN.
OKCancelClear All
203103-2-4S
.25
1/8–27
7/16–20
.78
1.08
.66
203103-4-6S
.38
1/4–18
9/16–18
1.09
1.23
.88
203103-6-6S
.38
3/8–18
9/16–18
1.22
1.31
1.02
203103-6-8S
.50
3/8–18
3/4–16
1.22
1.42
1.02
203103-8-10S
.63
1/2–14
7/8–14
1.47
1.64
1.23
203103-12-12S
.75
3/4–14
1-1/16–12
1.59
1.89
1.36
Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
