Danfoss (Weatherhead)

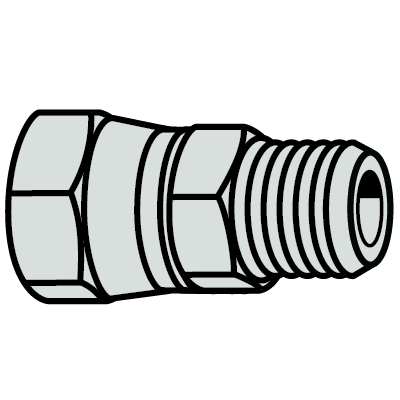

Steel Swivel Adapters - Female 37° JIC

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

Part Number
TUBE O.D.
OKCancelClear All
MALE PIPE THREAD
OKCancelClear All
HEX C
OKCancelClear All
L
OKCancelClear All
9100X4X4
1/4
1/4
9/16
1.130
9100X5X4
5/16
1/4
11/16
1.170
9100X6X4
3/8
1/4
11/16
1.290
9100X6X6
3/8
3/8
11/16
1.290
9100X8X6
1/2
3/8
7/8
1.430
9100X8X8
1/2
1/2
7/8
1.610
9100X10X6
5/8
3/8
1
1.400
9100X10X8
5/8
1/2
1
1.600
9100X12X8
3/4
1/2
1-1/8
1.650
9100X12X12
3/4
3/4
1-1/8
1.650
9100X16X12
1
3/4
1-3/8
1.750
9100X16X16
1
1
1-3/8
1.940
9100X20X20
1-1/4
1-1/4
1-7/8
2.090

Pressure ratings shown are the pressure ratings for the fitting and are not necessarily the pressure ratings applicable in an assembly with hydraulic hose. The applicable pressure rating for an assembly with hydraulic hose is the lower value specified for the hose and the fitting unless otherwise agreed to by the supplier and user.
