Danfoss (Weatherhead)

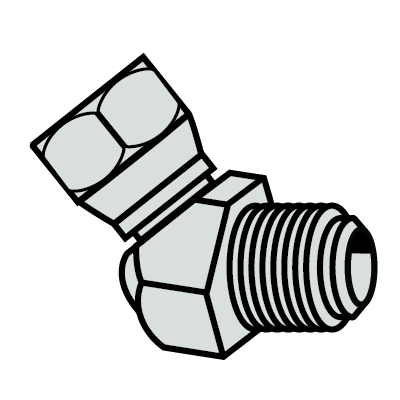

Steel Swivel Adapters - Female 45° Flare Swivel

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

Part Number
TUBE O.D.
45 FLARE THREAD
HEX C
L
L1
3/8
5/8-18
3/4
1.400
.429
1/2
3/4-16
1
1.760
.598
9154X10X10
5/8
7/8-14
1-1/4
1.920
.645

(Steel)

Pressure ratings shown are the pressure ratings for the fitting and are not necessarily the pressure ratings applicable in an assembly with hydraulic hose. The applicable pressure rating for an assembly with hydraulic hose is the lower value specified for the hose and the fitting unless otherwise agreed to by the supplier and user.
