Danfoss (Weatherhead)

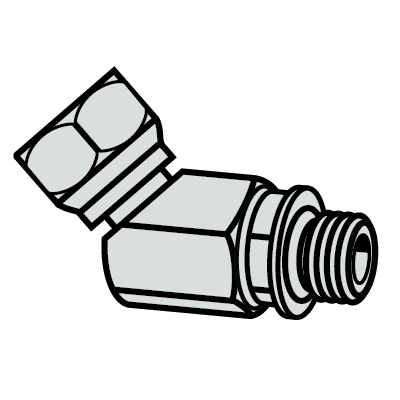

Steel Swivel Adapters - Male Straight Thread

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

Part Number
NPSM SWIVEL NUT
OKCancelClear All
MALE PIPE THREAD
OKCancelClear All
HEX C
OKCancelClear All
L
OKCancelClear All
L1
OKCancelClear All
9405X2X2
1/8-27
1/8-27
9/16
.720
.700
9405X2X4
1/8-27
1/4-18
11/16
1.190
.750
9405X4X2
1/4-18
1/8-27
11/16
1.060
.780
9405X4X4
1/4-18
1/4-18
11/16
.980
.750
9405X4X6
1/4-18
3/8-18
11/16
1.090
.810
9405X4X8
1/4-18
1/2-14
1
1.810
.940
9405X6X4
3/8-18
1/4-18
13/16
1.090
.900
9405X6X6
3/8-18
3/8-18
7/8
1.090
.900
9405X6X8
3/8-18
1/2-14
1
1.350
1.020
9405X6X12
3/8-18
3/4-14
1-1/4
2.000
1.120
9405X8X6
1/2-14
3/8-18
1
1.280
1.020
9405X8X8
1/2-14
1/2-14
1
1.350
1.020
9405X8X12
1/2-14
3/4-14
1-1/4
1.490
1.140
9405X8X16
1/2-14
1-11-1/2
1-1/2
2.380
1.250
9405X12X12
3/4-14
3/4-14
1-1/2
1.490
1.20
9405X12X16
3/4-14
1-11-1/2
1-1/2
2.380
1.380
9405X16X12
1-11-1/2
3/4-14
1-1/2
2.190
1.440
9405X16X16
1-11-1/2
1-11-1/2
1-1/2
1.820
1.450
9405X16X20
1-11-1/2
1-1/4-11-1/2
1-7/8
1.578
2.620
9405X20X16
1-1/4-11-1/2
1-11-1/2
1-7/8
2.530
1.660
9405X20X20
1-1/4-11-1/2
1-1/4-11-1/2
1-7/8
2.070
1.630
9405X20X24
1-1/4-11-1/2
1-1/2-11-1/2
2-1/8
2.810
1.780
9405X24X24
1-1/2-11-1/2
1-1/2-11-1/2
2-1/8
2.810
1.750
9405X32X32
2-11-1/2
2-11-1/2
2-5/8
3.120
2.310

(Ref. SAE No.140357)

­Pressure ratings shown are the pressure ratings for the fitting and are not necessarily the pressure ratings applicable in an assembly with hydraulic hose. The applicable pressure rating for an assembly with hydraulic hose is the lower value specified for the hose and the fitting unless otherwise agreed to by the supplier and user.
