Danfoss (Weatherhead)

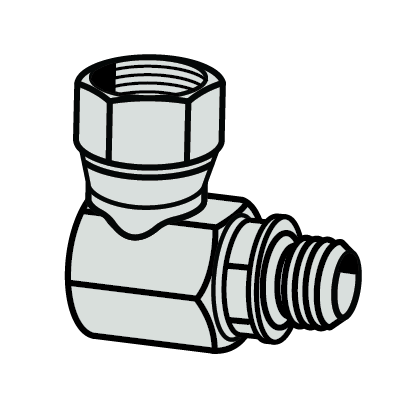

Steel Swivel Adapters - Male Straight Thread O-Ring

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

Part Number
STRAIGHT THREAD
OKCancelClear All
NPSM SWIVEL NUT
OKCancelClear All
HEX C
OKCancelClear All
L
OKCancelClear All
L1
OKCancelClear All
9515X4X4
7/16–20
1/4–18
11/16
1.109
.781
9515X4X6
7/16–20
3/8–18
7/8
1.100
.900
9515X6X4
9/16–18
1/4–18
11/16
1.187
.781
9515X6X6
9/16–18
3/8–18
7/8
1.296
.937
9515X6X8
9/16–18
1/2–14
1
1.484
1.000
9515X8X6
3/4–16
3/8–18
1
1.515
1.000
9515X8X8
3/4–16
1/2–14
1
1.515
1.000
9515X8X12
3/4–16
3/4–14
1-1/4
1.656
1.250
9515X10X6
7/8–14
3/8–18
1
1.640
1.000
9515X10X8
7/8–14
1/2–14
1
1.640
1.000
9515X10X12
7/8–14
3/4–14
1-1/4
1.781
1.250
9515X12X8
1-1/16–12
1/2–14
1-1/4
1.921
1.125
9515X12X12
1-1/16–12
3/4–14
1-1/4
1.921
1.250
9515X14X12
1-3/16–12
3/4–14
1-1/4
1.921
1.250
9515X16X12
1-5/16–12
3/4–14
1-1/2
2.093
1.375
9515X16X16
1-5/16–12
1–11-1/2
1-1/2
2.093
1.390
9515X20X12
1-5/8–12
3/4–14
1-7/8
2.484
1.562
9515X20X20
1-5/8–12
1-1/4–11-1/2
1-7/8
2.484
1.656
9515X24X24
1-7/8–12
1-1/2–11-1/2
2-1/8
2.609
1.734

REF SAE No 140257

Pressure ratings shown are the pressure ratings for the fitting and are not necessarily the pressure ratings applicable in an assembly with hydraulic hose. The applicable pressure rating for an assembly with hydraulic hose is the lower value specified for the hose and the fitting unless otherwise agreed to by the supplier and user.
