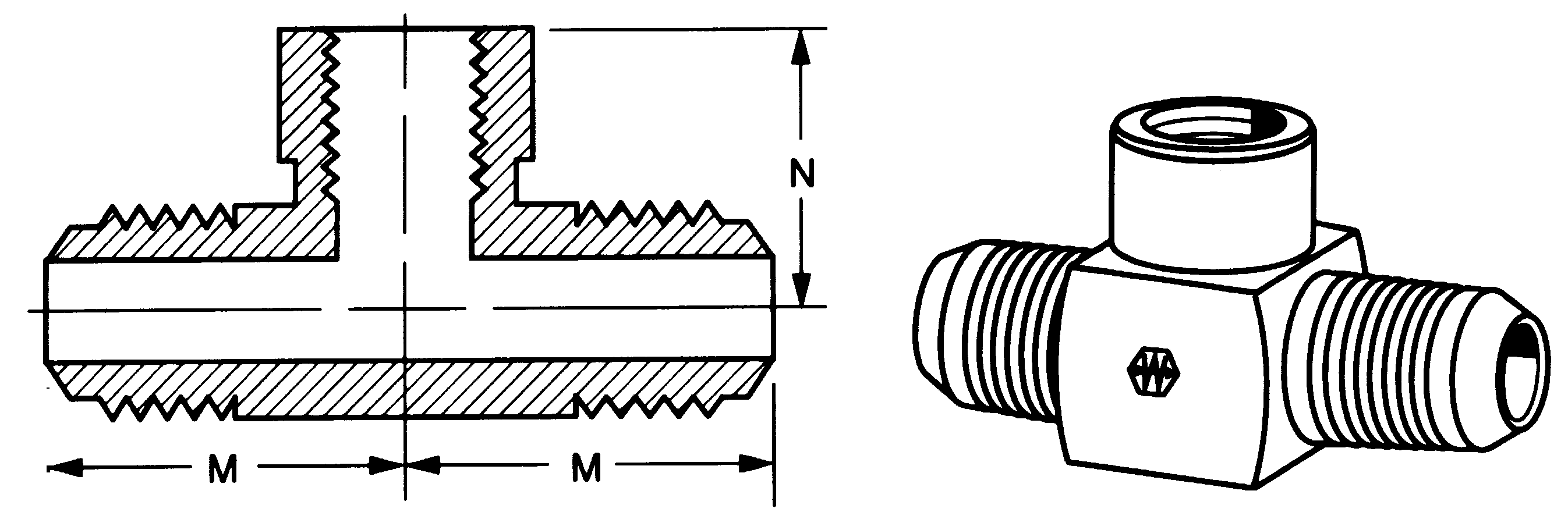

Steel–SAE 37° JIC Female Branch Tee

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
FEM. PIPE THREAD
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
ACROSS FLATS
OKCancelClear All
C5655X4
1/4
1/8
1.08
.66
9/16
C5655X12
3/4
3/4
1.89
1.36
1-5/16
TF5655X4
1/4
1/8
1.08
.66
5/8
TF5655X4X4X4
1/4
1/4
1.14
.88
3/4
TF5655X5
5/16
1/8
1.08
.66
5/8
TF5655X6
3/8
1/4
1.23
.88
3/4
TF5655X6X6X6
3/8
3/8
1.30
1.02
7/8
TF5655X8
1/2
3/8
1.42
1.02
7/8
TF5655X8X8X8
1/2
1/2
1.55
1.23
1-1/8
TF5655X10
5/8
1/2
1.64
1.23
1-1/8
TF5655X12
3/4
3/4
1.89
1.36
1-3/8
TF5655X16
1
1
2.17
1.62
1-5/8
TF5655X32
2
2
3.30
2.39
2-7/8

Stainless Steel No. 5667X (Ref. SAE No. 070427) (Ref. MS51513)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
