Danfoss (Weatherhead)

Steel–SAE 37° JIC Male Run Tee

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

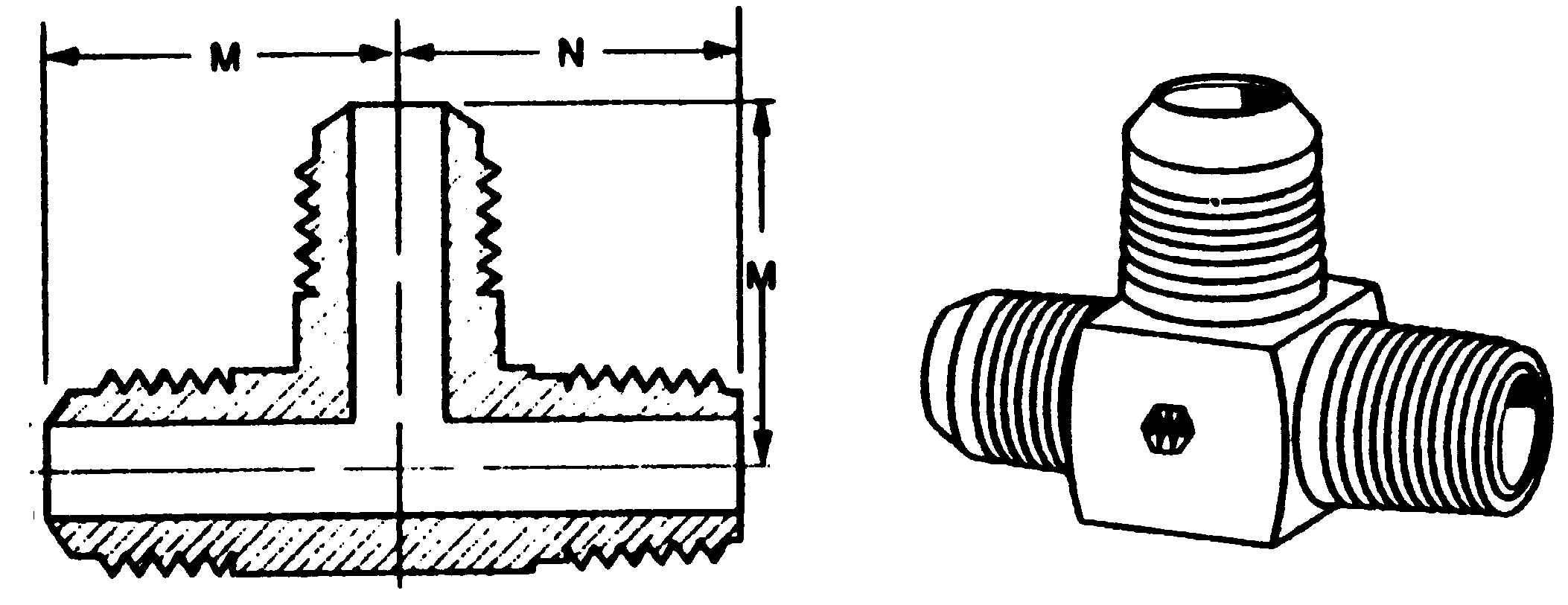

Part Number
TUBE O.D.
OKCancelClear All
MALE PIPE THREAD
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
ACROSS FLATS
OKCancelClear All
C5755X4
1/4
1/8
.89
.78
7/16
C5755X8
1/2
3/8
1.25
1.22
3/4
C5755X10
5/8
1/2
1.45
1.47
7/8
C5755X12
3/4
3/4
1.66
1.59
1-1/16
C5755X16
1
1
1.81
1.97
1-5/16
TF5755X4
1/4
1/8
.89
.78
1/2
TF5755X4X4X4
1/4
1/4
.95
1.09
5/8
TF5755X5
5/16
1/8
.95
.78
9/16
TF5755X6
3/8
1/4
1.06
1.09
5/8
TF5755X6X6X6
3/8
3/8
1.16
1.22
13/16
TF5755X8
1/2
3/8
1.25
1.22
13/16
TF5755X8X8X8
1/2
1/2
1.31
1.47
15/16
TF5755X10
5/8
1/2
1.45
1.47
15/16
TF5755X12
3/4
3/4
1.66
1.59
1-1/8
TF5755X16
1
1
1.81
1.97
1-3/8
TF5755X20
1-1/4
1-1/4
2.06
2.38
1-3/4
TF5755X24
1-1/2
1-1/2
2.33
2.64
2
TF5755X32
2
2
3.06
3.00
2-5/8

Stainless Steel No. 5767X (Ref. SAE No. 070424) (Ref. MS51511)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
