Danfoss (Weatherhead)

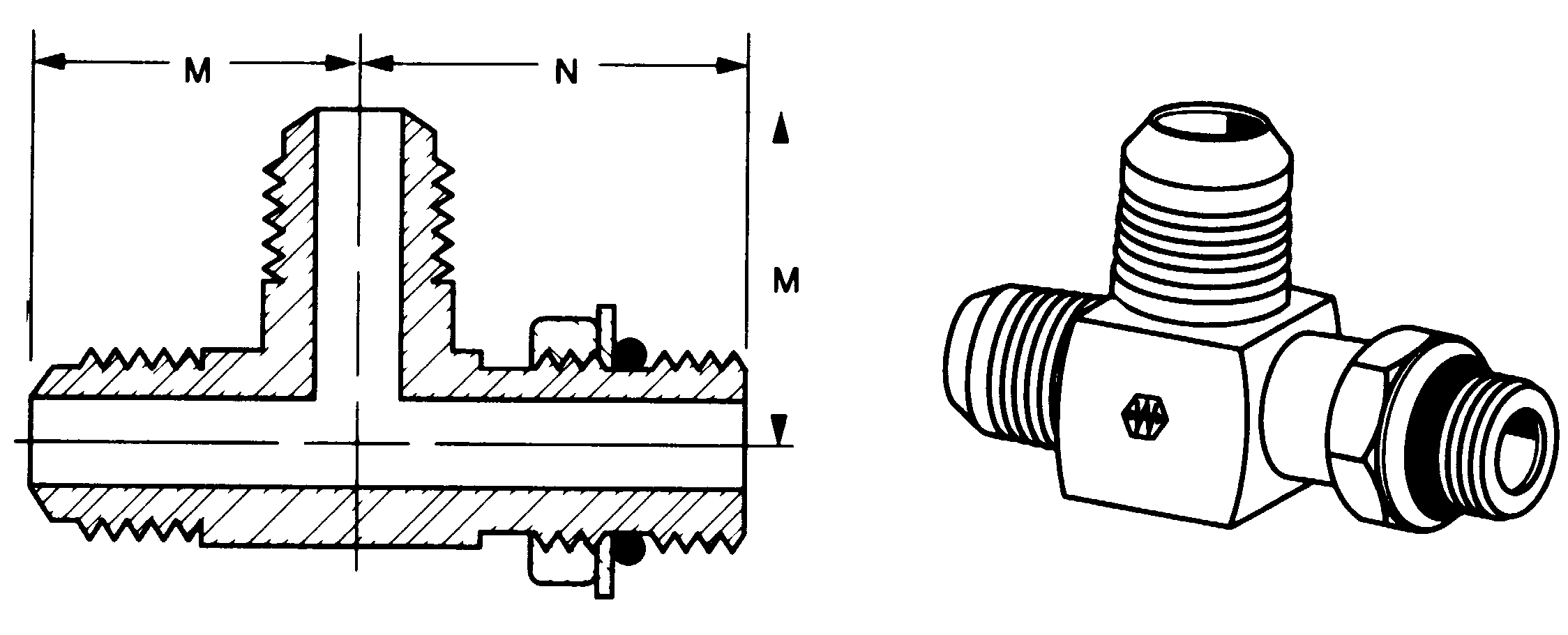

Steel–SAE 37° JIC Straight Thread O-Ring Run Tee

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
ACROSS FLATS
OKCancelClear All
C5716X4
1/4
1/4
.89
1.03
7/16
C5716X5
5/16
5/16
.95
1.09
9/16
C5716X6
3/8
3/8
1.06
1.25
9/16
C5716X8
1/2
1/2
1.25
1.45
3/4
C5716X10
5/8
5/8
1.45
1.70
7/8
C5716X12
3/4
3/4
1.66
1.94
1-1/16
C5716X16
1
1
1.81
2.05
1-5/16
C5716X20
1-1/4
1-1/4
2.06
2.25
1-5/8
TF5716X4
1/4
1/4
.89
1.03
1/2
TF5716X5
5/16
5/16
.95
1.09
9/16
TF5716X6
3/8
3/8
1.06
1.25
5/8
TF5716X8
1/2
1/2
1.25
1.45
13/16
TF5716X10
5/8
5/8
1.45
1.70
15/16
TF5716X12
3/4
3/4
1.66
1.94
1-1/8
TF5716X14
7/8
7/8
1.73
2.00
1-1/4
TF5716X16
1
1
1.81
2.05
1-3/8
TF5716X20
1-1/4
1-1/4
2.06
2.25
1-3/4
TF5716X24
1-1/2
1-1/2
2.33
2.39
2

(Ref. MS51530)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
