Danfoss (Weatherhead)

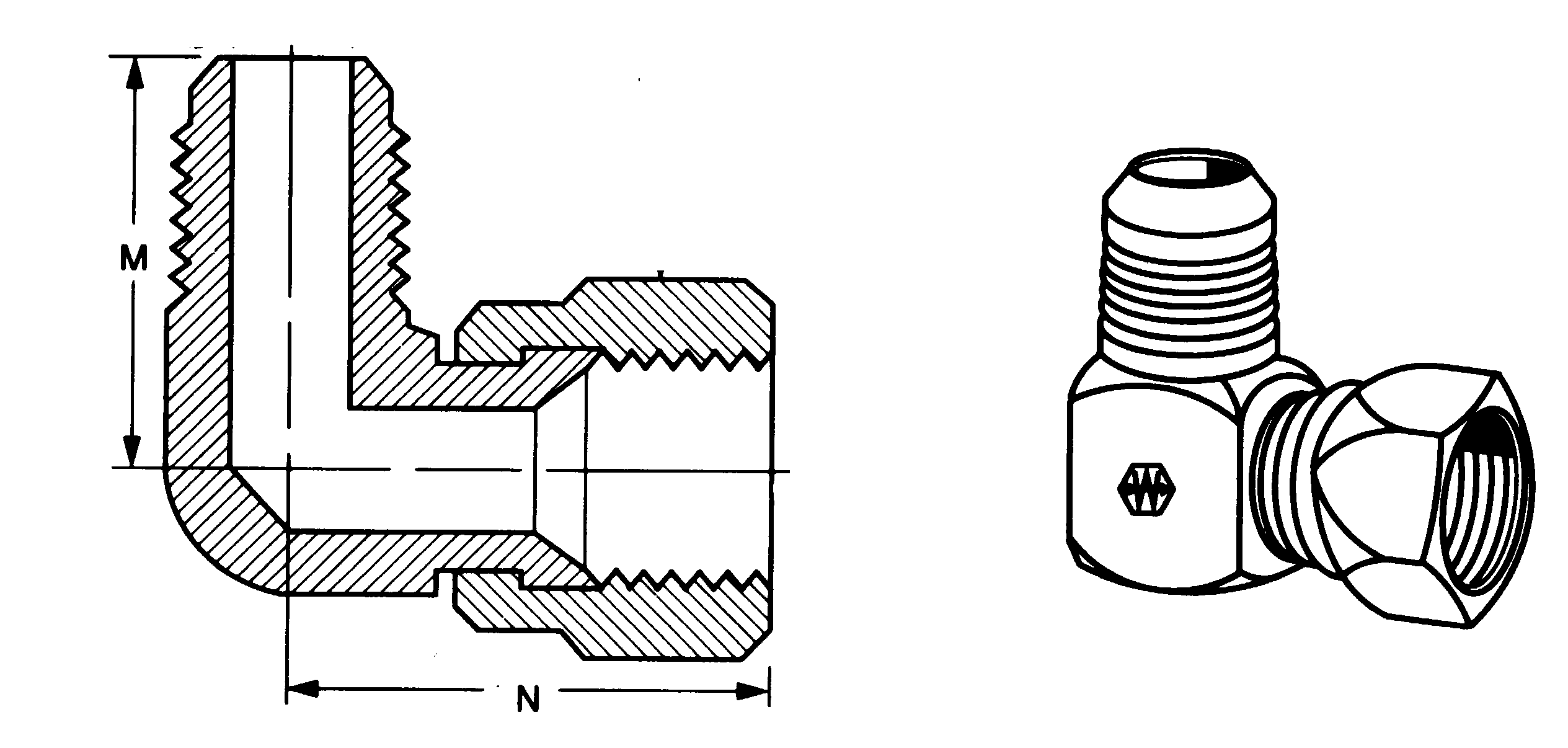

Steel–SAE 37° JIC Swivel Nut 90° Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
ACROSS FLATS
OKCancelClear All
C5506X4
1/4
.89
1.00
7/16
C5506X5
5/16
.95
1.06
9/16
C5506X6
3/8
1.06
1.25
9/16
C5506X8
1/2
1.25
1.42
3/4
C5506X10
5/8
1.43
1.62
7/8
C5506X12
3/4
1.66
1.75
1-1/16
C5506X16
1
1.81
2.00
1-5/16
C5506X20
1-1/4
2.06
2.31
1-5/8
TF5506X4
1/4
.89
1.00
1/2
TF5506X5
5/16
.95
1.06
9/16
TF5506X6
3/8
1.06
1.25
5/8
TF5506X8
1/2
1.25
1.38
13/16
TF5506X10
5/8
1.45
1.62
15/16
TF5506X12
3/4
1.66
1.75
1-1/8
TF5506X14
7/8
1.73
1.78
1-1/4
TF5506X16
1
1.81
2.00
1-3/8
TF5506X20
1-1/4
2.06
2.31
1-3/4
TF5506X24
1-1/2
2.33
2.59
2
TF5506X32
2
3.06
3.38
2-5/8

Stainless Steel No. 5518X (Ref. SAE No. 070221) (Ref. MS51521)

https://catalogs.jhf.com/Pneumatic-and-Hydraulic-Equipment/1217/

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
