Danfoss (Weatherhead)

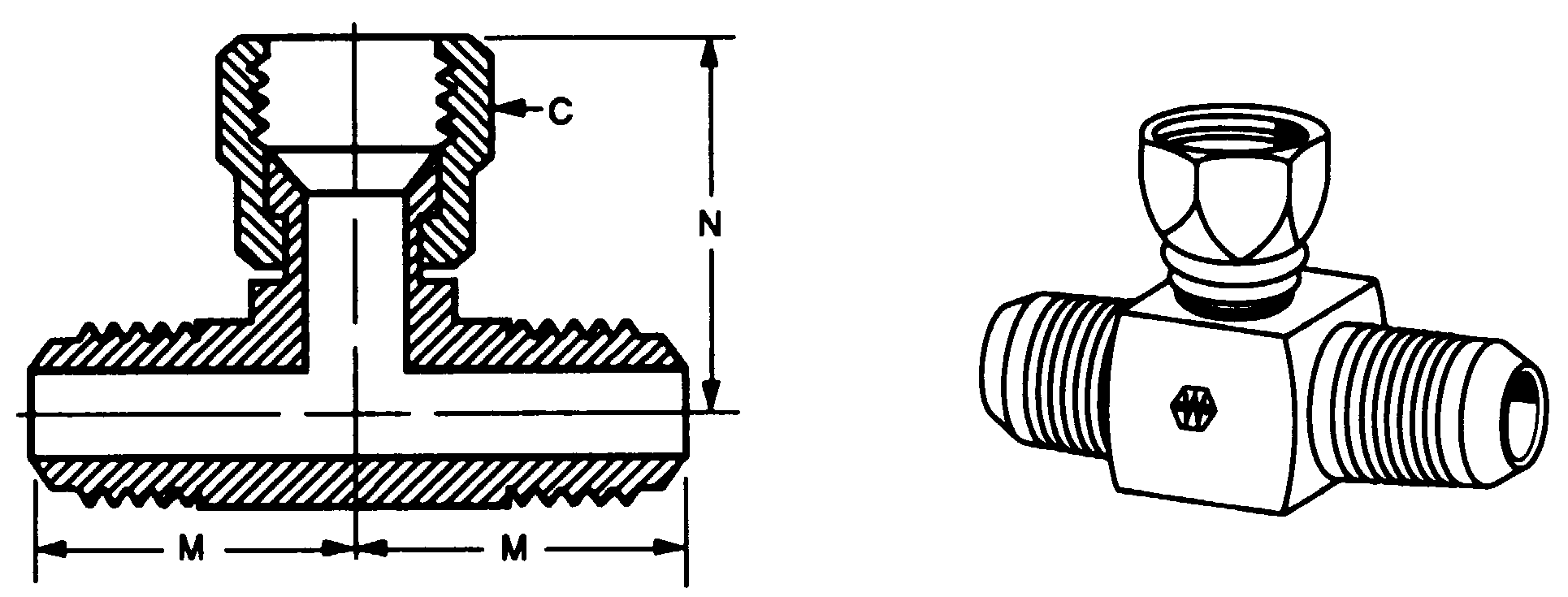

Steel–SAE 37° JIC Swivel Nut Branch Tee

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
HEX C
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
C5707X6
3/8
11/16
1.06
1.25
C5707X12
3/4
1-1/4
1.66
1.75
C5707X16
1
1-1/2
1.81
2.00
TF5707X4
1/4
9/16
.89
1.00
TF5707X5
5/16
5/8
.95
1.06
TF5707X6
3/8
11/16
1.06
1.25
TF5707X8
1/2
7/8
1.25
1.38
TF5707X10
5/8
1
1.45
1.62
TF5707X12
3/4
1-1/4
1.66
1.75
TF5707X16
1
1-1/2
1.81
2.00
TF5707X20
1-1/4
2
2.06
2.31

Stainless Steel No.5719X (Ref. SAE No. 070433) (Ref. MS51524)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
