Danfoss (Weatherhead)

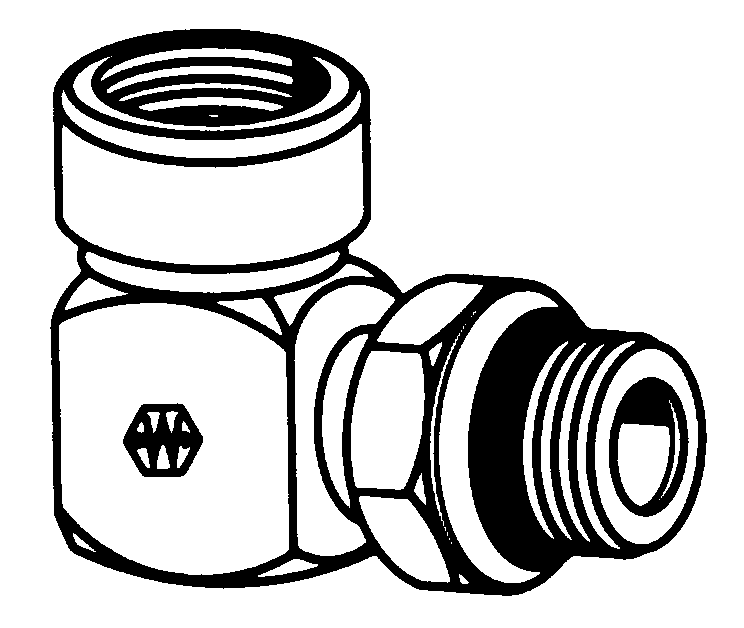

Straight Thread O-Ring 90° Elbow To Female Pipe - Steel

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
MALE PORT SIZE
OKCancelClear All
FEM. PIPE THREAD
OKCancelClear All

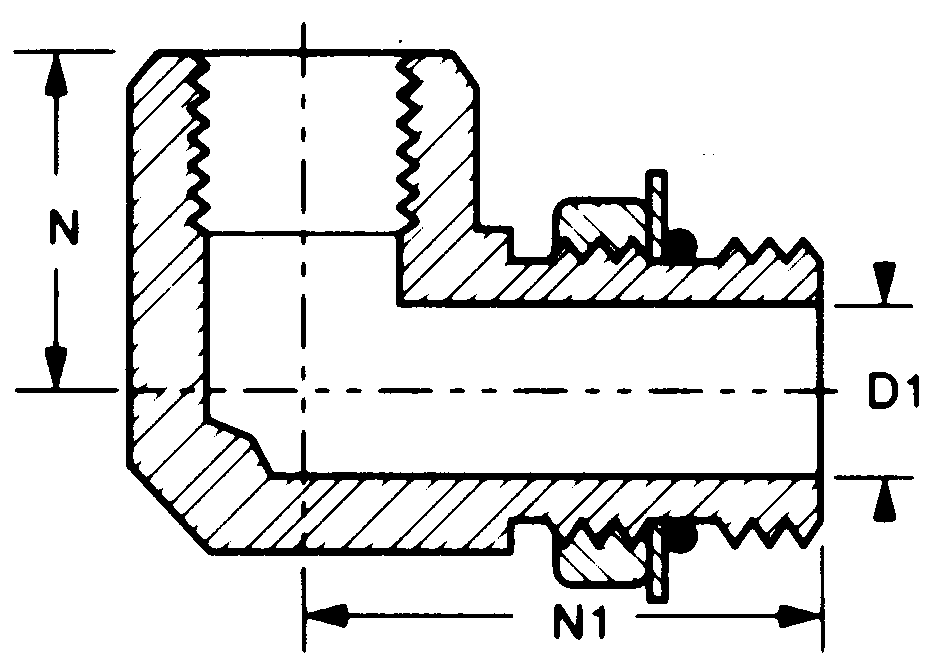

D1
OKCancelClear All
N
OKCancelClear All
N1
OKCancelClear All
C3459X8
1/2
3/8
.422
.63
1.47
C3459X10
5/8
1/2
.500
.75
1.81
C3459X12
3/4
3/4
.656
.81
2.00
C3459X16
1
1
.876
1.00
2.25
TF3459X4
1/4
1/8
.172
.66
1.09
TF3459X5
5/16
1/8
.234
.66
1.13
TF3459X6
3/8
1/4
.297
.88
1.31
TF3459X8
1/2
3/8
.391
1.02
1.49
TF3459X10
5/8
1/2
.484
1.23
1.80
TF3459X12
3/4
3/4
.609
1.36
2.06
TF3459X14
7/8
3/4
.719
1.42
2.06
TF3459X16
1
1
.844
1.62
2.17
TF3459X20
1-1/4
1-1/4
1.078
1.70
2.38
TF3459X24
1-1/2
1-1/2
1.312
2.08
2.58
TF3459X32
2
2
1.781
2.39
3.02
