Danfoss (Weatherhead)

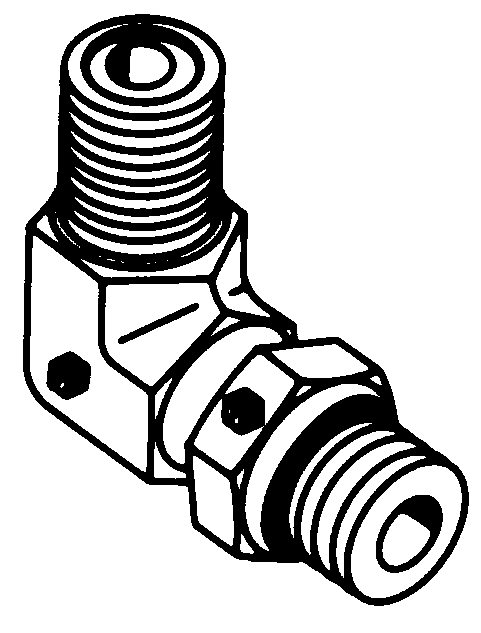

Straight Thread O-Ring 90° Elbow To For-Seal

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All

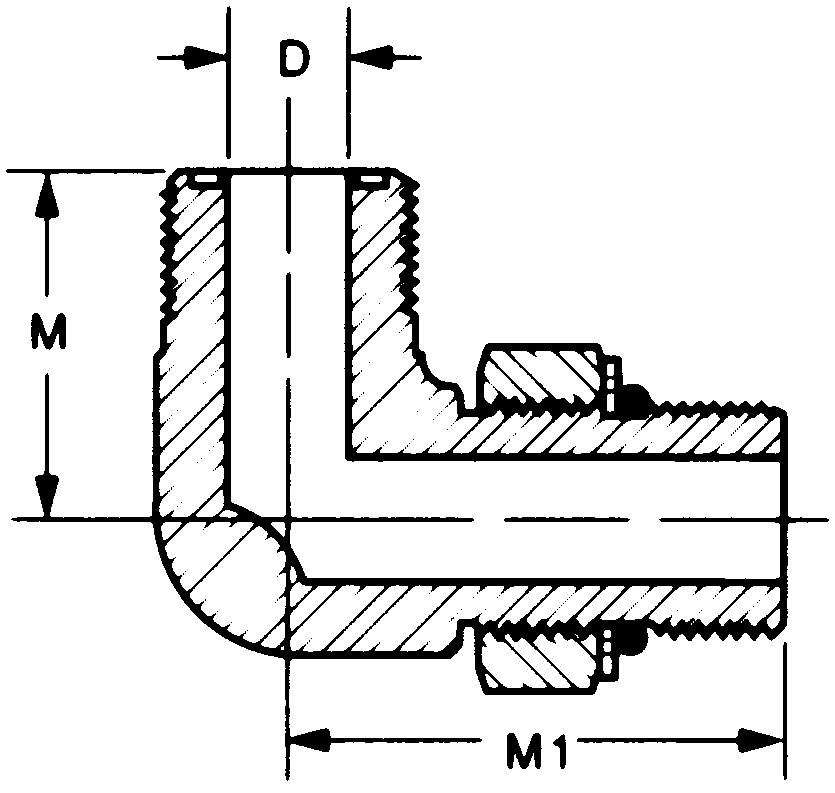

D
OKCancelClear All
M
OKCancelClear All
M1
OKCancelClear All
4515x4
1/4
1/4
.172
.85
1.29
4515x4x6
1/4
3/8
.172
.92
1.45
4515x4x8
1/4
1/2
.172
.97
1.60
4515x6x4
3/8
1/4
.264
.98
1.37
4515x6x5
3/8
5/16
.264
.98
1.37
4515x6
3/8
3/8
.264
.98
1.45
4515x6x8
3/8
1/2
.264
1.04
1.60
4515x6x10
3/8
5/8
.264
1.15
1.97
4515x8x6
1/2
3/8
.378
1.10
1.44
4515x8
1/2
1/2
.378
1.10
1.60
4515x8x10
1/2
5/8
.378
1.21
1.97
4515x8x12
1/2
3/4
.378
1.32
2.17
4515x10x8
5/8
1/2
.484
1.31
1.80
4515x10
5/8
5/8
.484
1.31
1.97
4515x10x12
5/8
3/4
.484
1.41
2.17
4515x12x8
3/4
1/2
.609
1.47
1.84
4515x12x10
3/4
5/8
.609
1.47
2.01
4515x12
3/4
3/4
.609
1.47
2.17
4515x12x16
3/4
1
.609
1.62
2.35
4515x16x12
1
3/4
.811
1.64
2.32
4515x16
1
1
.811
1.64
2.35
4515x16x20
1
1-1/4
.811
1.76
2.45
4515x20x16
1-1/4
1
1.024
1.76
2.42
4515x20
1-1/4
1-1/4
1.024
1.76
2.45
4515x24
1-1/2
1-1/2
1.312
1.92
2.59

Ref. SAE No. 520220
