Danfoss (Weatherhead)

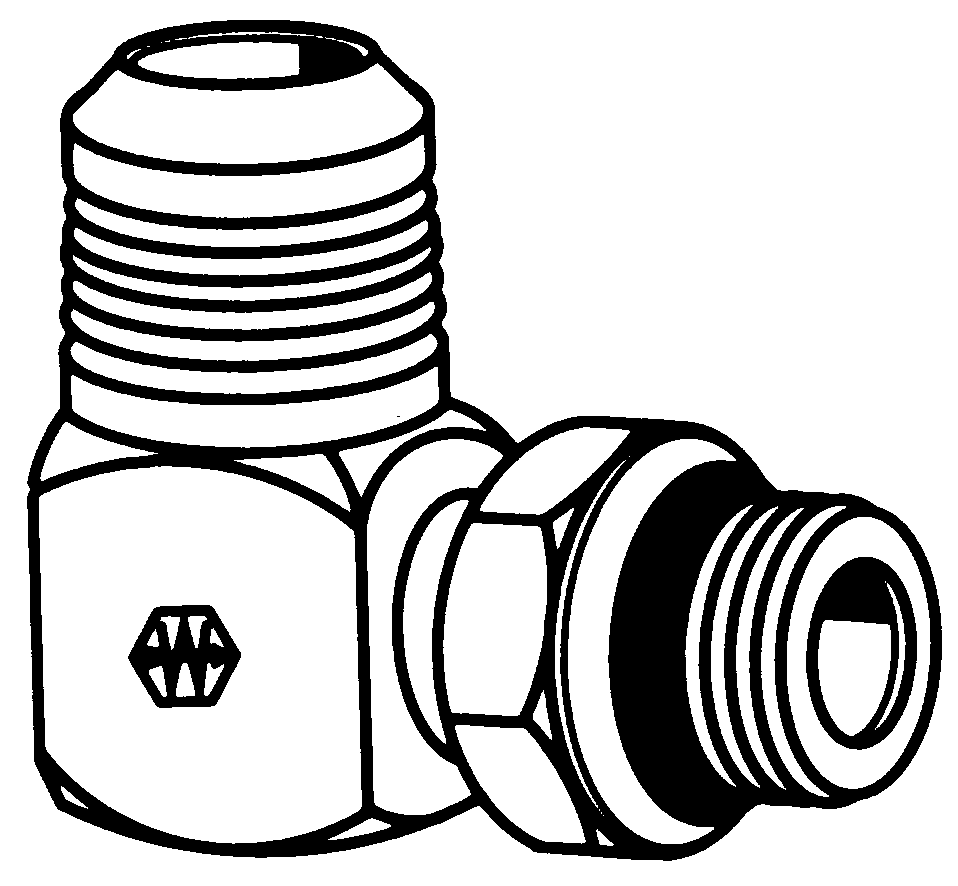

Straight Thread O-Ring 90° Elbow To Male 37° JIC

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All

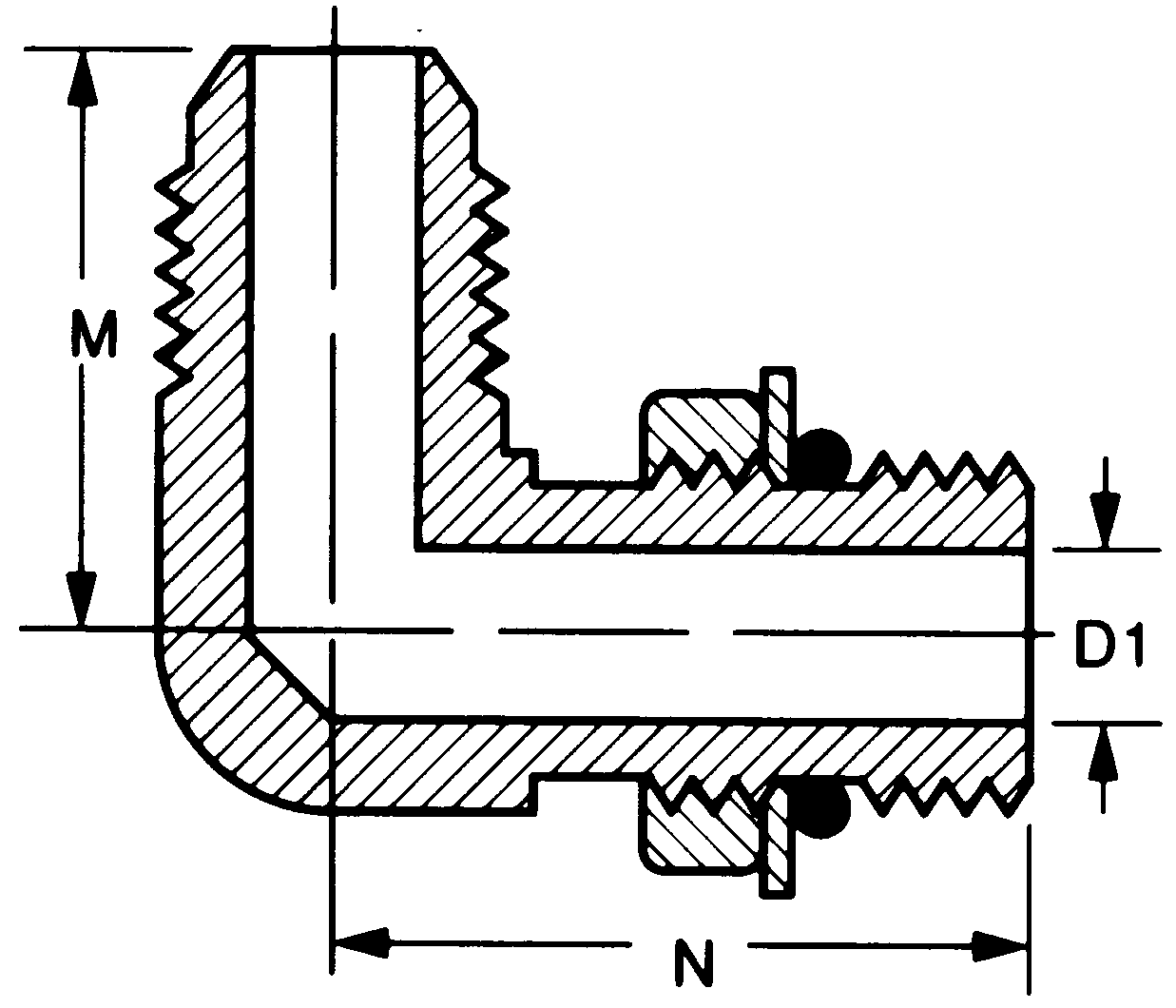

D1
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
C5515X4
1/4
1/4
.172
.89
1.03
C5515X5
5/16
5/16
.234
.95
1.13
C5515X6
3/8
3/8
.297
1.06
1.25
C5515X6X8
3/8
1/2
.391
1.14
1.45
C5515X8X6
1/2
3/8
.297
1.25
1.32
C5515X8
1/2
1/2
.391
1.25
1.45
C5515X8X10
1/2
5/8
.484
1.33
1.70
C5515X10
5/8
5/8
.484
1.33
1.70
C5515X12X10
3/4
5/8
.484
1.66
1.78
C5515X12
3/4
3/4
.609
1.66
1.94
C5515X16X12
1
3/4
.609
1.81
2.05
C5515X16
1
1
.844
1.81
2.05
C5515X20
1-1/4
1-1/4
1.078
2.06
2.25
TF5515X4
1/4
1/4
.172
.89
1.03
TF5515X4X5
1/4
5/16
.234
.95
1.12
TF5515X4X6
1/4
3/8
.297
.95
1.25
TF5515X5X4
5/16
1/4
.172
.98
1.06
TF5515X5
5/16
5/16
.234
.95
1.09
TF5515X5X6
5/16
3/8
.297
.98
1.25
TF5515X6X4
3/8
1/4
.172
1.06
1.09
TF5515X6X5
3/8
5/16
.234
1.06
1.12
TF5515X6
3/8
3/8
.297
1.06
1.25
TF5515X6X8
3/8
1/2
.391
1.16
1.45
TF5515X6X10
3/8
5/8
.484
1.22
1.70
TF5515X8X6
1/2
3/8
.297
1.25
1.34
TF5515X8
1/2
1/2
.391
1.25
1.45
TF5515X8X10
1/2
5/8
.484
1.31
1.70
TF5515X8X12
1/2
3/4
.609
1.41
1.94
TF5515X10X8
5/8
1/2
.391
1.45
1.52
TF5515X10
5/8
5/8
4.84
1.45
1.70
TF5515X10X12
5/8
3/4
.609
.155
1.94
TF5515X12X8
3/4
1/2
.391
1.66
1.61
TF5515X12X10
3/4
5/8
.484
1.66
1.80
TF5515X12
3/4
3/4
.609
1.66
1.94
TF5515X12X14
3/4
7/8
.718
1.72
2.00
TF5515X12X16
3/4
1
.844
1.78
2.05
TF5515X14
7/8
7/8
.718
1.73
2.00
TF5515X16X12
1
3/4
.609
1.81
2.06
TF5515X16X14
1
7/8
.718
1.81
2.06
TF5515X16
1
1
.844
1.81
2.05
TF5515X16X20
1
1-1/4
1.078
2.00
2.25
TF5515X20X16
1-1/4
1
.844
2.06
2.23
TF5515X20
1-1/4
1-1/4
1.078
2.06
2.25
TF5515X24X20
1-1/2
1-1/4
1.078
2.33
2.37
TF5515X24
1-1/2
1-1/2
1.312
2.33
2.39
TF5515X32
2
2
1.781
3.06
2.89

Ref. SAE No. 070220
