Danfoss (Weatherhead)

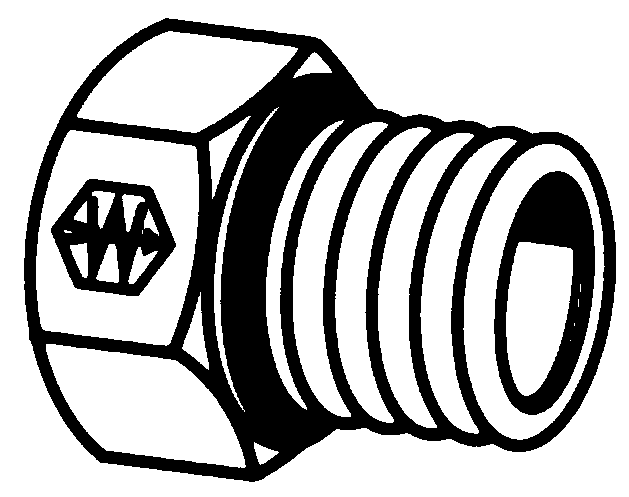

Straight Thread O-Ring Hex Head Plug

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
PORT SIZE
OKCancelClear All

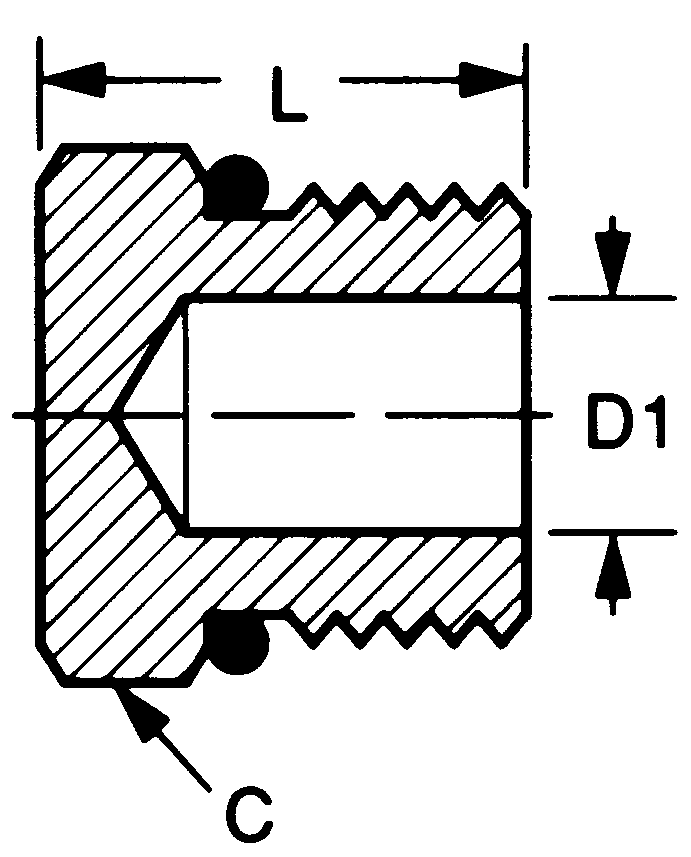

HEX C
OKCancelClear All
L
OKCancelClear All
D1 OPT.
OKCancelClear All
7237X2
1/8
7/16
.60
.093
7237X3
3/16
1/2
.60
.125
7237X4
1/4
9/16
.67
.203
7237X5
5/16
5/8
.67
.234
7237X6
3/8
11/16
.73
.297
7237X8
1/2
7/8
.80
.422
7237X10
5/8
1
.93
.500
7237X12
3/4
1-1/4
1.09
.656
7237X14
7/8
1-3/8
1.09
.718
7237X16
1
1-1/2
1.12
.875
7237X20
1-1/4
1-7/8
1.20
1.093
7237X24
1-1/2
2-1/8
1.27
1.344
7237X32
2
2-3/4
1.42
1.815

Ref. SAE No. 090109A - Parts Furnished with Zinc Plates
