Danfoss (Weatherhead)

Brass & Steel BSP Metric Fittings

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

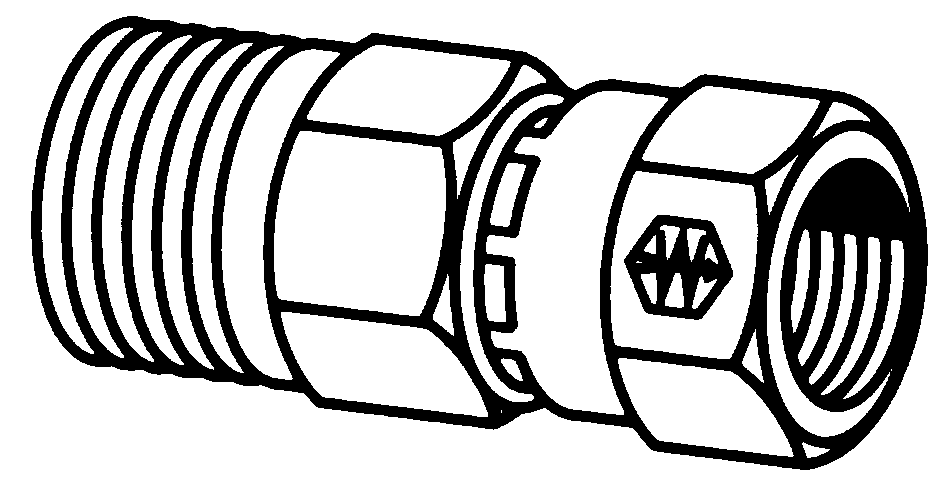

Part Number
TUBE O.D.
OKCancelClear All
BSPP PIPE SIZE
OKCancelClear All
BSPP PARALLEL THREAD
OKCancelClear All
D1
OKCancelClear All
L
OKCancelClear All
M9600X4X4
1/4
1/4
1/4-19
.198*
1.43
M9600X5X4
5/16
1/4
1/4-19
.198*
1.50
M9600X6X4
3/8
1/4
1/4-19
.198*
1.56
M9600X6X6
3/8
3/8
3/8-19
.322*
1.66
M9600X8X6
1/2
3/8
3/8-19
.322*
1.77
M9600X8X8
1/2
1/2
1/2-14
.448*
1.92
M9600X10X8
5/8
1/2
1/2-14
.448*
1.97
M9600X12X12
3/4
3/4
3/4-14
.666*
2.25
M9600X16X16
1
1
1-11
.885*
2.48
M9600X20X20
1-1/4
1-1/4
1-1/4-11
1.125*
2.64

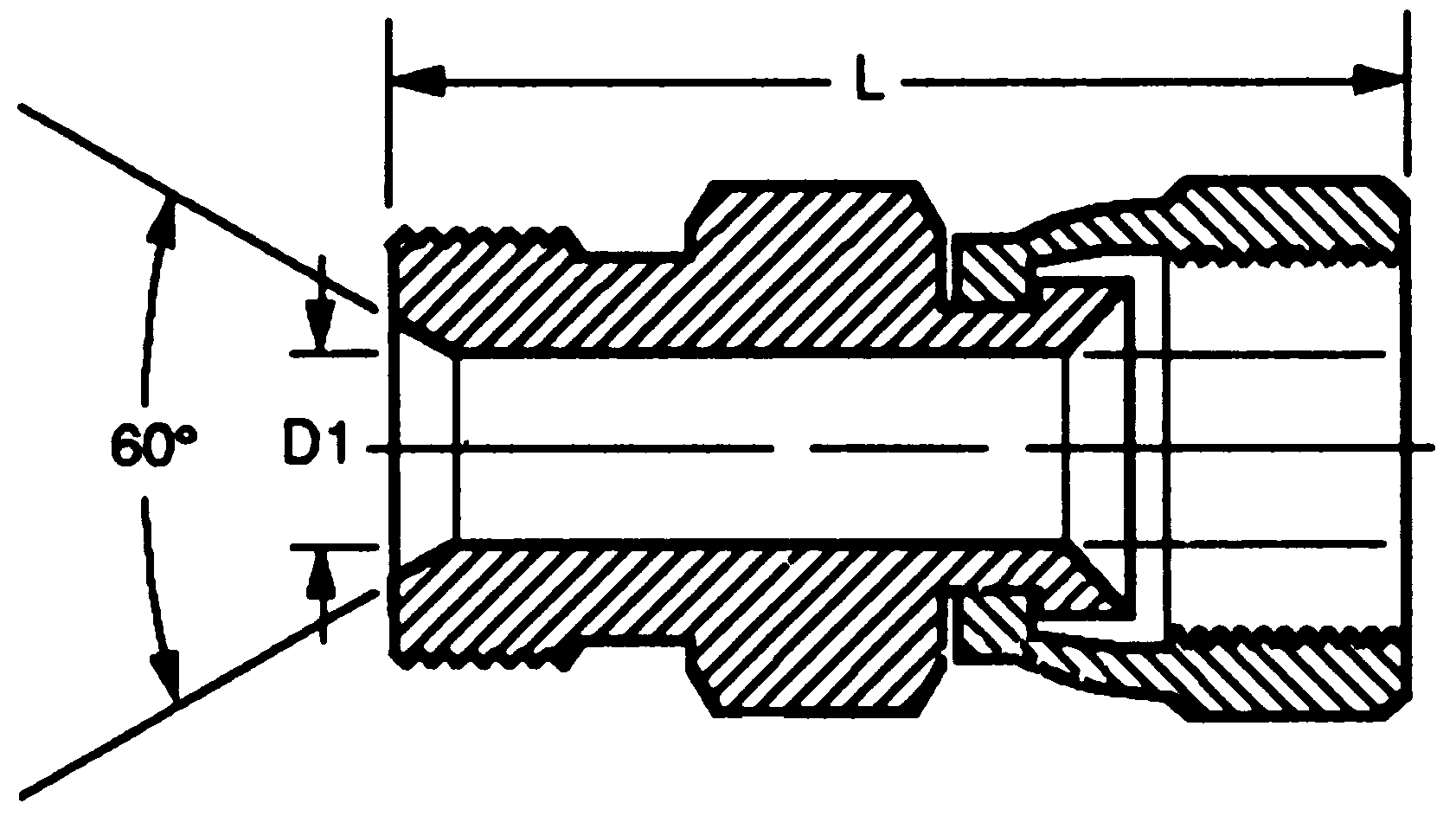

Optional Counterbore
