Linear Motion Guides

Linear Motion Guides

Linear guides, also known as linear motion guides or linear bearings, are mechanical systems designed to provide precise and smooth linear motion in a variety of applications. These components are critical in industrial automation, robotics, manufacturing, and other fields where controlled, straight-line movement is required. Linear guides are known for their high rigidity, load capacity, and durability, making them a reliable choice for demanding environments.

John Henry Foster offers high-precision, smooth, and reliable linear motion solutions for any industry. Whether you are looking for heavy-duty systems or compact solutions, our range of linear guides are designed to enhance the performance and longevity of your automated equipment.

Benefits of Linear Guides
High Precision:
Linear guides provide highly accurate movement, which is essential for applications like CNC machining, robotics, and automated assembly lines.

Smooth Operation:
The linear motion guides ensure smooth, low-friction movement, reducing wear and tear and enhancing the overall lifespan of the system.

Heavy Load Capacity:
Our trusted suppliers offer linear motion guides that are capable of handling heavy loads and dynamic forces, making them ideal for high-load applications.

Customization:
Linear motion guides are customizable, offering various designs and configurations. Linear guides can also be tailored to specific application needs, such as different sizes, orientations, and load capacities.

Long Service Life:
These systems are designed for durability, reducing the frequency of maintenance and improving the overall reliability of the machinery.

High Speed and Acceleration:
Linear motion guides enable fast and accurate movements, making them ideal for applications that require high-speed positioning and acceleration.

Modular System:
Linear motion systems from JHF are modular, meaning you can easily scale or adapt your system to meet changing needs or configurations.

Corrosion Resistance:
Many linear guides are designed to be corrosion-resistant, which is ideal for industries that involve exposure to harsh environments or chemicals.
Linear Motion Guide Features

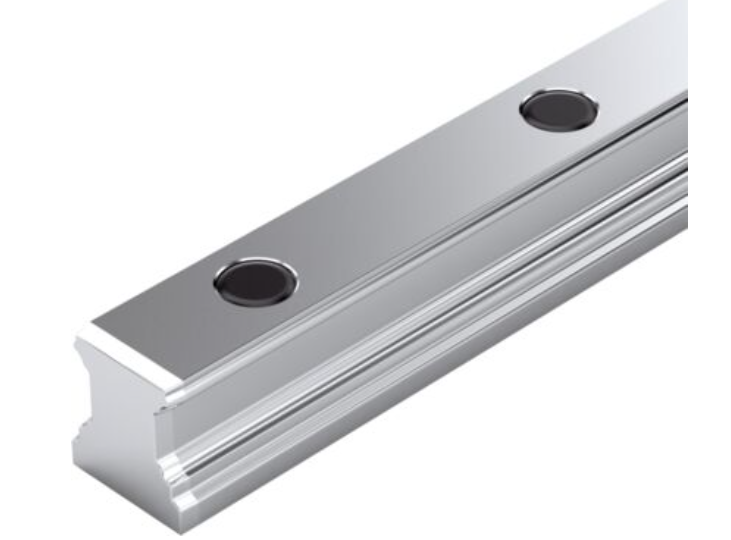

Precision Rails and Ball Bearing Technology:
Many linear guides use precision rails and ball bearings to reduce friction and ensure high accuracy, which is important for systems that require tight tolerances.

Linear Guideways with High Rigidity:
Designed for demanding applications, these systems offer high rigidity, ensuring stability even under heavy loads.

Variety of Sizes and Configurations:
Linear guides come in a range of sizes, from compact solutions for tight spaces to larger systems capable of handling substantial loads.

Smooth and Quiet Movement:
These guides are engineered to operate with minimal noise and vibration, which is crucial for sensitive environments, such as cleanrooms or laboratories.

Sealing Options for Harsh Environments:
Some models come with sealing options to protect against dust, dirt, and other contaminants, extending the life of the guides in tough industrial environments.

Easy Integration:
These guides are designed for easy integration into automation systems, with pre-drilled holes for mounting and installation.
Linear Motion Guides vs. Ball Bushing & Round Shafting: A Comparison


Feature / Benefit

Linear Motion Guide

Ball Bushing & Round Shafting

Load Capacity

High (especially in all directions)

Moderate (mainly radial loads)

Rigidity / Stiffness

Very high (due to wide contact surface and preloading options)

Lower (point contact = more deflection under load)

Accuracy / Repeatability

Superior (tight tolerances, minimal deflection)

Moderate to low

Smoothness of Motion

Smooth with low variation (due to multiple contact points)

Can be rougher, especially under misalignment

Speed Capability

High (can exceed 5 m/s depending on design)

Moderate

Installation Alignment Sensitivity

Requires precise alignment

More forgiving of misalignment

Compactness

More compact for same load rating

Bulkier for equivalent load

Lubrication & Maintenance

Requires regular maintenance but options for sealed units exist

Requires frequent lubrication; open to contamination

Life Expectancy

Longer under proper conditions

Shorter due to wear on bushings and shaft

Support Structure Requirements

Needs flat, stiff mounting surface

Can be used with less rigid structures

Cost (Initial)

Higher upfront cost

Lower upfront cost

Cost (Over Lifecycle)

Lower (longer life, better performance, less downtime)

Higher (frequent replacement, more maintenance)

Application Suitability

Ideal for high-precision, high-load, high-speed applications

Suitable for low-load, low-precision, or DIY setups
