Danfoss (Weatherhead)

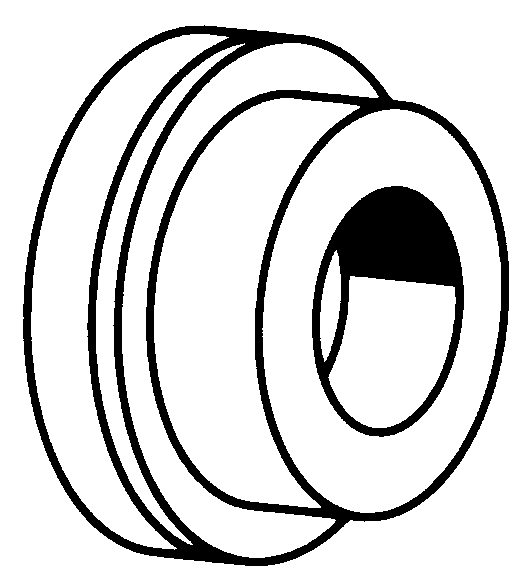

For-Seal Steel Fittings
Typical Application: High pressure hydraulic, pneumatic and chemical processing.
Pressure: Operating pressure to 6000 psi (1-1/4” and 1-1/2” maximum 4,000 psi).
Sealing Method: O-Ring.
Vibration: Excellent resistance.
Material: 12L14 Steel.
Plating: All fittings are zinc plated, except braze parts which are oil dipped.
Used With: Steel tubing (tubing for brazing must be non-coated).
Advantages: Tubing is brazed for permanent leakproof connection.
Conformance: Meets SAE J1453.
Assembly Instructions: Contact JHF for assembly procedure.
Label Set: FS-2400 (adhesive)
