D72H-2AK-AE3-RMG-QEB
1/4"
72 Series
D73H-2AK-AD3-RMG-QDB
1/4"
73 Series
D74H-3AK-AD3-RMG-QDB
3/8"
74 Series
D74H-4AK-AD3-RMG-QDB
1/4"
74 Series
D74H-36K-AD3-RMG-QDB
3/4"
74 Series

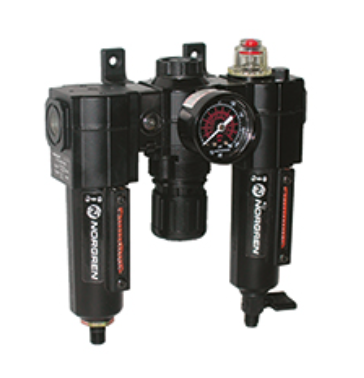

Excelon design allows in-line or modular installation with other 72, 73 and 74 Series products.
High efficiency water and particle removal. 40-micron element is standard. Particle removal within ISO 8357-1: Class 3 and 5
Regulator balanced valve minimizes effect of variation in the inlet pressure on the outlet pressure.
Micro-Fog Lubricator
Quick release metal bayonet bowl
High visible, prismatic liquid level indicator lens
Pressure Adjustment Range: 5 to 150 PSI
Pressure Gauge (G) and Wall Mounting Brackets (B) included
3-Port / 2-Position Lock-Out Valves help conform to OSHA Lock-Out regulations. Valves block inlet air flow and exhaust downstream air in the closed position. Valves can be quickly closed by manually pushing the yellow side. Valves can be locked in the closed position with a customer supplied padlock.
