18mm
Single Solenoid Two Position
All valves are internally piloted. All include manual non-locking override.
18mm
Single Solenoid Two Position Spring Return
-
26mm
Single Solenoid Two Position Spring Return
-
18mm

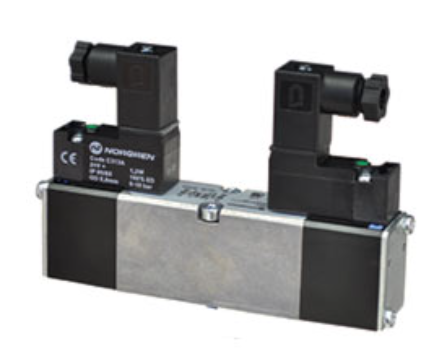

Double Solenoid, Two Position
-
26mm
Double Solenoid, Two Position
-
18mm
Double Solenoid, Three Position, Spring Center
All ports blocked
26mm
Double Solenoid, Three Position, Spring Center
All ports blocked
26mm
Double Solenoid, Three Position, Spring Center
Cylinder Ports open to exhaust
All valves are internally piloted. All include manual non-locking override.
120V 50/60
18A
2.1 / 1.5 VA
230V 50/60
19A
2.1 / 1.5 VA
** Replace digits in positions 13, 14 and 15 in valve part numbers.
B
Cable Grip Connector (Included w/vlv.)
C
10 ft. molded cable, 0-240V AC/DC
5
10 ft. molded cable, indicator light, surge suppression, 24V AC/DC
6
10 ft. molded cable, indicator light 110/50 Hz—120/60 Hz
* Replace digit in position 16 in valve part numbers.
* Connecting hardware included.
* Connecting hardware included.
Used to build dual pressure assemblies.
Create manifold stations for future use.
John Henry Foster Assembly Available!
SPECIFICATIONS / TECHNICAL DATA
Medium:
Compressed Air
40-Micron Filtered
Lubricated or Non-Lubricated
Mounting: Single or Manifolding Subbases
Ambient Temperature Range: 5 to 120 Degrees Fahrenheit
Inlet Temperature Range: 5-175 Degrees Fahrenheit
Operating Pressure:
V41: 36 to 145 PSIG
V40 / V44 (Single Solenoid): 15 to 145 PSIG
V40 / V44 (Double Solenoid): 30 to 145 PSIG
V45: 44 to 145 PSIG
Flow Characteristics (Cv):
Double 3-Way
V41 (18 MM): 0.62
V45 (26 MM): 1.12
Single Solenoid
V40 (18 MM): 0.58
V44 (26 MM): 0.92
Double Solenoid
V40 (18 MM): 0.58
V44 (26 MM): 0.92
Double Solenoid
V49 (18 MM): 0.62
V44 (26 MM): 0.92
MATERIALS OF CONSTRUCTION
Body: Die Cast Aluminum
Valves Seals: Nitrile
Pilot Seals: Viton
