IMI Norgren

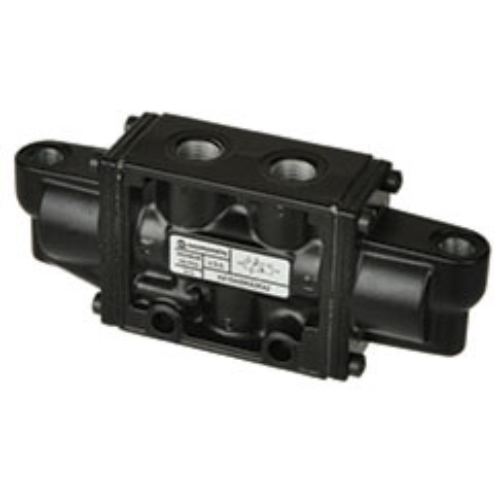

Norgren Nugget 200 3- and 4-Way Solenoid Directional Control Valves

3-Way and 4-Way Solenoid Valves


Long-Lasting Spool Designs
High Flow Contact Valves
Wide Range of Operators and Voltages Available
Port and Operator Identification
Shock Absorbent Bumpers
Internal or External Pilot Supply, Field Convertible
Available Solenoid, Air Pilot and Manual Operated

Part Number
DESCRIPTION
CONN.
OKCancelClear All
SIZE
OKCancelClear All
H
OKCancelClear All
W
L
OKCancelClear All
K41DA00-KS1-KV1
3-way, Single Solenoid, Two Position
Grip Nut
1/4
5.30
1.26
5.35
K41DA00-KS1-K32
3-way, Single Solenoid, Two Position
Conduit
1/4
4.26
1.26
4.43
K41EA00-KS1-K31
3-way, Single Solenoid, Two Position
Conduit
3/8
4.62
1.26
4.43

* Please specify voltage, 120V/60, 100V/50, 240V/60, 12V/60, 24V/60, 6VDC, 12VDC, 24VDC

Part Number
DESCRIPTION
OKCancelClear All
CONN.
OKCancelClear All
SIZE
OKCancelClear All
H
OKCancelClear All
W
OKCancelClear All
L
OKCancelClear All
K71DA00-KS6-K32
4-way, Single Solenoid, Two Position, Spring Return
Conduit
1/4
4.62
1.26
7.63
K71DA00-KS6-KV1
4-way, Single Solenoid, Two Position, Spring Return
Grip Nut
1/4
5.30
1.26
7.51
K71DA00-KS6-KX2
4-way, Single Solenoid, Two Position, Spring Return
Hazardous
1/4
4.91
2.16
7.37
K71EA00-KS6-K31
4-way, Single Solenoid, Two Position, Spring Return
Conduit
3/8
4.62
1.26
7.63
K71EA00-KS6-KV1
4-way, Single Solenoid, Two Position, Spring Return
Grip Nut
3/8
5.30
1.26
7.51
K71EA00-KS6-KX1
4-way, Single Solenoid, Two Position, Spring Return
Hazardous
3/8
4.91
2.16
7.37
K71FA00-KS6-K52
4-way, Single Solenoid, Two Position, Spring Return
Conduit
1/2
4.62
1.26
7.63
K71FA00-KS6-KV2
4-way, Single Solenoid, Two Position, Spring Return
Grip Nut
1/2
5.30
1.26
7.51
K71FA00-KS6-KX1
4-way, Single Solenoid, Two Position, Spring Return
Hazardous
1/2
4.91
2.16
7.37
K71DA00-K31-K31
4-way, Double Solenoid, Two Position
Conduit
1/4
4.62
1.26
9.52
K71DA00-KV2-KV2
4-way, Double Solenoid, Two Position
Grip Nut
1/4
5.30
1.26
9.28
K71EA00-K36-K36
4-way, Double Solenoid, Two Position
Conduit
3/8
4.62
1.26
9.52
K71EA00-KV6-KV6
4-way, Double Solenoid, Two Position
Grip Nut
3/8
5.30
1.26
9.28
K71FA00-K36-K36
4-way, Double Solenoid, Two Position
Conduit
1/2
4.62
1.26
9.52
K71FA00-KV6-KV6
4-way, Double Solenoid, Two Position
Grip Nut
1/2
5.30
1.26
9.28
K81DA00-K38-K38
4-way, Double Solenoid, Three Position, Spring Center, All Ports Blocked In Center Position
Conduit
1/4
4.62
1.26
9.52
K81DA00-KV0-KV0
4-way, Double Solenoid, Three Position, Spring Center, All Ports Blocked In Center Position
Grip Nut
1/4
5.30
1.26
9.28
K81EA00-K38-K38
4-way, Double Solenoid, Three Position, Spring Center, All Ports Blocked In Center Position
Conduit
3/8
4.62
1.26
9.52
K81EA00-KV0-KV0
4-way, Double Solenoid, Three Position, Spring Center, All Ports Blocked In Center Position
Grip Nut
3/8
5.30
1.26
9.28
K81FA00-K38-K38
4-way, Double Solenoid, Three Position, Spring Center, All Ports Blocked In Center Position
Conduit
1/2
4.62
1.26
9.52
K81FA00-KV0-KV0
4-way, Double Solenoid, Three Position, Spring Center, All Ports Blocked In Center Position
Grip Nut
1/2
5.30
1.26
9.28
K81DA06-K30-K30
4-way, Double Solenoid, Three Position, Spring Center, Cylinder Ports Open To Exhaust In Center Position
Conduit
1/4
4.62
1.26
9.52
K81DA06-KV0-KV0
4-way, Double Solenoid, Three Position, Spring Center, Cylinder Ports Open To Exhaust In Center Position
Grip Nut
1/4
5.30
1.26
9.28
K81EA06-K38-K38
4-way, Double Solenoid, Three Position, Spring Center, Cylinder Ports Open To Exhaust In Center Position
Conduit
3/8
4.62
1.26
9.52
K81EA06-KV8-KV8
4-way, Double Solenoid, Three Position, Spring Center, Cylinder Ports Open To Exhaust In Center Position
Grip Nut
3/8
5.30
1.26
9.52
K81FA06-KV0-KV0
4-way, Double Solenoid, Three Position, Spring Center, Cylinder Ports Open To Exhaust In Center Position
Grip Nut
1/2
5.30
1.26
9.28

* Please specify voltage, 120V/60, 100V/50, 240V/60, 12V/60, 24V/60, 6VDC, 12VDC, 24VDC

Electrical Connections (Mini-Standard):

  Cable Grip Connector: NEMA 4
  1/2" Conduit Connector: NEMA 4
  Molded 5 Ft. Cable Connector: 0-220 VAC/DC
  NEMA 7C & D, 8 C & D, 9E, F & G (Hazardous Location)
  Class I, Groups C & D
  Class II, Groups E, F & G

NOTE: Other electrical connections and operators available, consult John Henry Foster Company.

SPECIFICATIONS / TECHNICAL DATA

Voltages:
  Standard:
    120 VAC: 7 Watts (Optional 3.5 Watts Available)
  Optional:
    12 VAC: 7 Watts
    24 VAC: 7 Watts (Optional 3.5 Watts Available)
    48 VAC: 7 Watts
    240 VAC: 7 Watts
    12 VDC: 6 Watts (Optional 2 Watts Available)
    24 VDC: 6 Watts (Optional 2 Watts Available)
Duty: Continuous at 90 to 105% of Rated Voltage
Coil Type: Class H Molded w/ 3-Pin Plug-In Connector
Enclosure Classification: NEMA 4 per DIN 40050-IP65
Override: Manual, Non-Locking
Fluids: Filtered Lubricated or Non-Lubricated Compressed Air
Pressure Range:
  Internal Pilot Supply: 15 to 150 PSIG
  External Pilot Supply: 10" Hg (Vacuum) to 150 PSIG
  Air or Manual Operation: 10" Hg (Vacuum) to 150 PSIG
Temperature Range:
  Solenoid Valves: -20 to 120 Degrees Fahrenheit
  Air and Manual: -20 to 160 Degrees Fahrenheit
Average Flow Factor: Inline Valve, 1.6 Cv
Minimum Pilot:
  Single Solenoid: 35 PSIG
  Double Solenoid, Detent: 25 PSIG
  Double Solenoid, Spring Center: 45 PSIG

MATERIALS OF CONSTRUCTION

  Body: Aluminum
  Spool: Anodized Aluminum
  Seals: Nitrile
  Solenoid Base: PPS Plastic
  Solenoid Plunger and Spring: Stainless Steel
