3-way, Single Air Pilot, Two Position, Spring Return
1/4
5.30
1.26
5.35
3-way, Double Air Pilot, Two Position, Detent
1/4
4.62
1.26
4.43
4-way, Single Air Pilot, Two Position, Spring Return
1/4
1.26
2.16
6.15
4-way, Single Air Pilot, Two Position, Spring Return
3/8
1.26
2.16
6.15
4-way, Single Air Pilot, Two Position, Spring Return
1/2
1.26
2.16
6.15
4-way, Double Air Pilot, Two Position, Detent
1/4
1.26
2.16
6.56
4-way, Double Air Pilot, Two Position, Detent
3/8
1.26
2.16
6.56
4-way, Double Air Pilot, Two Position, Detent
1/2
1.26
2.16
6.56
K81DA00-KAC-KAC
4-way, Double Air Pilot, Two Position, Detent
1/4
1.26
2.16
6.56
K81EA00-KAC-KAC
4-way, Double Air Pilot, Two Position, Detent
3/8
1.26
2.16
6.56
4-way, Double Air Pilot, Two Position, Detent
1/2
1.26
2.16
6.56
4-way, Double Air Pilot, Three Position, Spring Center, Cyl. Ports Open to Exh. In Center Position
1/4
1.26
2.16
6.56
4-way, Double Air Pilot, Three Position, Spring Center, Cyl. Ports Open to Exh. In Center Position
3/8
1.26
2.16
6.56
4-way, Double Air Pilot, Three Position, Spring Center, Cyl. Ports Open to Exh. In Center Position
1/2
1.26
2.16
6.56

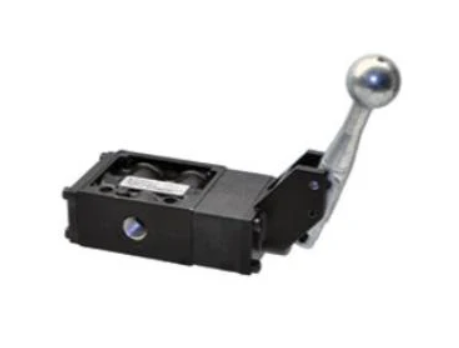

3-way, Lever Operated, Two Position, Detent
1/4
5.30
1.26
5.35
4-way, Lever Operated, Two Position, Spring Return
1/4
4.53
2.16
8.14
K71EA00-KS6-KL1
4-way, Lever Operated, Two Position, Spring Return
3/8
4.53
2.16
8.14
K71FA00-KS6-KL2
4-way, Lever Operated, Two Position, Spring Return
1/2
4.53
2.16
8.14
4-way, Lever Operated, Two Position, Detent
1/4
4.53
2.16
7.56
K71EA00-KC0-KL2
4-way, Lever Operated, Two Position, Detent
3/8
4.53
2.16
7.56
K71FA00-KC0-KL3
4-way, Lever Operated, Two Position, Detent
1/2
4.53
2.16
7.56
K81DA00-KC0-KL2
4-way, Lever Operated, Three Position, Spring Center, All Ports Blocked In Center Position
1/4
4.53
2.16
8.56
4-way, Lever Operated, Three Position, Spring Center, All Ports Blocked In Center Position
3/8
4.53
2.16
8.56
4-way, Lever Operated, Three Position, Spring Center, All Ports Blocked In Center Position
1/2
4.53
2.16
8.56
4-way, Lever Operated, Three Position, Detent, All Ports Blocked In Center Position
1/4
4.53
2.16
7.56
4-way, Lever Operated, Three Position, Detent, All Ports Blocked In Center Position
3/8
4.53
2.16
7.56
4-way, Lever Operated, Three Position, Detent, All Ports Blocked In Center Position
1/2
4.53
2.16
7.56
4-way, Lever Operated, Three Position, Detent, Cyl. Ports Open To Exh. In Center Position
1/4
4.53
2.16
7.56
4-way, Lever Operated, Three Position, Detent, Cyl. Ports Open To Exh. In Center Position
3/8
4.53
2.16
7.56
4-way, Lever Operated, Three Position, Detent, Cyl. Ports Open To Exh. In Center Position
1/2
4.53
2.16
7.56
OPTIONS
Voltages:
Standard: 120 VAC: 7 Watts (Optional 3.5 Watts Available)
Optional:
12 VAC: 7 Watts
24 VAC: 7 Watts (Optional 3.5 Watts Available)
48 VAC: 7 Watts
240 VAC: 7 Watts
12 VDC: 6 Watts (Optional 2 Watts Available)
24 VDC: 6 Watts (Optional 2 Watts Available)
Duty: Continuous at 90 to 105% of Rated Voltage
Coil Type: Class H. Molded w/ 3-Pin Plug-In Connector
Enclosure Classification: NEMA 4 per DIN 40050-IP65
Override: Manual, Non-Locking
SPECIFICATIONS
Fluid: Filtered Lubricated or Non-Lubricated Compressed Air
Pressure Range:
Internal Pilot Supply: 15 to 150 PSIG
External Pilot Supply: 10" Hg (vacuum) to 150 PSIG
Air or Manual Operation: 10" Hg (vacuum) to 150 PSIG
Temperature Range:
Solenoid Valves: -20 to 120 Degrees Fahrenheit
Air and Manual Valves: -20 to 160 Degrees Fahrenheit
Average Flow Factor: In-Line Valve 1.6 Cv
Minimum Pilot:
Single Solenoid: 35 PSIG
Double Solenoid, Detent: 25 PSIG
Double Solenoid, Spring Center: 45 PSIG
MATERIALS OF CONTSTRUCTION
Body: Aluminum
Spool: Anodized Aluminum
Seals: Nitrile
Solenoid Base: PPS Plastic
Solenoid Plunger and Spring: Stainless Steel
