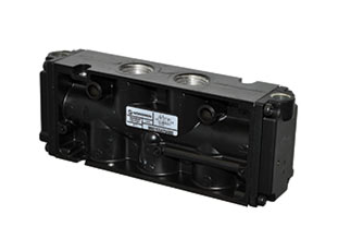

Norgren Nugget 500 Valves

Two-Year Unconditional Warranty

High Flow
Quality Appearance
Durable Finish
Internal or External Pilot Supply
Low Wattage Solenoid Operators
Small Subbase Footprint
Port and Operator Identification

Part Number
DESCRIPTION
OKCancelClear All
OPERATOR
OKCancelClear All
ELEC. CONN.
OKCancelClear All
PIPE SIZE
OKCancelClear All
H
OKCancelClear All
W
L
OKCancelClear All
MN01CGA-75-AJJA
4-way, Two Position, Spring Return
Single Solenoid
Grip Nut
1/2
2.71
1.44
9.46
MN01CGA-75-AJJC
4-way, Two Position, Spring Return
Single Solenoid
Conduit
1/2
2.71
1.44
9.46
MN01CHA-75-AJJA
4-way, Two Position, Spring Return
Single Solenoid
Grip Nut
3/4
2.71
1.44
9.46
MN01CHA-75-AJJC
4-way, Two Position, Spring Return
Single Solenoid
Conduit
3/4
2.71
1.44
9.46
MN01CGA-73-A000
4-way, Two Position, Spring Return
Single Air Pilot
Air Pilot
1/2
2.44
1.44
6.56
MN01CHA-73-A000
4-way, Two Position, Spring Return
Single Air Pilot
Air Pilot
3/4
2.44
1.44
6.56
MN01CGA-25-BJJA
4-way, Two Position, Detent
Double Solenoid
Grip Nut
1/2
2.71
1.44
13.3
MN01CGA-25-BJJC
4-way, Two Position, Detent
Double Solenoid
Conduit
1/2
2.71
1.44
13.3
MN01CHA-25-BJJA
4-way, Two Position, Detent
Double Solenoid
Grip Nut
3/4
2.71
1.44
13.3
MN01CHA-25-BJJC
4-way, Two Position, Detent
Double Solenoid
Conduit
3/4
2.71
1.44
13.3
MN01CGA-23-B000
4-way, Two Position, Detent
Double Air Pilot
Air Pilot
1/2
2.44
1.44
7.5
MN01CHA-23-B000
4-way, Two Position, Detent
Double Air Pilot
Air Pilot
3/4
2.44
1.44
7.5
MN03CGA-25-FJJA
4-way, Three Position, Spring Center, All Ports Blocked In Center Position
Double Solenoid
Grip Nut
1/2
2.71
1.44
13.3
MN03CGA-25-FJJC
4-way, Three Position, Spring Center, All Ports Blocked In Center Position
Double Solenoid
Conduit
1/2
2.71
1.44
13.3
MN03CHA-25-FJJA
4-way, Three Position, Spring Center, All Ports Blocked In Center Position
Double Solenoid
Grip Nut
3/4
2.71
1.44
13.3
MN03CHA-25-FJJC
4-way, Three Position, Spring Center, All Ports Blocked In Center Position
Double Solenoid
Conduit
3/4
2.71
1.44
13.3
MN03CGA-23-F000
4-way, Three Position, Spring Center, All Ports Blocked In Center Position
Double Air Pilot
Air Pilot
1/2
2.44
1.44
7.5
MN03CHA-23-F000
4-way, Three Position, Spring Center, All Ports Blocked In Center Position
Double Air Pilot
Air Pilot
3/4
2.44
1.44
7.5
MN05CGA-25-FJJA
4-way, Three Position, Spring Center, Cyl. Ports Open To Exhaust In Center Position
Double Solenoid
Grip Nut
1/2
2.71
1.44
13.3
MN05CGA-25-FJJA
4-way, Three Position, Spring Center, Cyl. Ports Open To Exhaust In Center Position
Double Solenoid
Conduit
1/2
2.71
1.44
13.3
MN05CHA-25-FJJA
4-way, Three Position, Spring Center, Cyl. Ports Open To Exhaust In Center Position
Double Solenoid
Grip Nut
3/4
2.71
1.44
13.3
MN05CHA-25-FJJC
4-way, Three Position, Spring Center, Cyl. Ports Open To Exhaust In Center Position
Double Solenoid
Conduit
3/4
2.71
1.44
13.3
MN05CGA-23-F000
4-way, Three Position, Spring Center, Cyl. Ports Open To Exhaust In Center Position
Double Air Pilot
Air Pilot
1/2
2.44
1.44
7.5
MN05CHA-23-F000
4-way, Three Position, Spring Center, Cyl. Ports Open To Exhaust In Center Position
Double Air Pilot
Air Pilot
3/4
2.44
1.44
7.5

* All Solenoids are 120V/60Hz, Other Voltages Available; See Voltage Selection Chart

Part Number
LETTER
OKCancelClear All
DESCRIPTION
OKCancelClear All
54934-01
A
Cable Grip
54934-02
B
Cable Grip with Indicator Light 110/120 VAC/DC
54934-05
C
1/2" NPT Conduit
54934-21
D
5-ft Molded Cable 0-220 VAC/DC
54934-30
E
5-ft Molded Cable with Indicator Light and Surge Suppression, 24 VAC/DC
54934-35
G
5-ft Molded Cable with Indicator Light and Surge Suppression, 110 VAC/DC
X
Solenoid Without Connector

* Substitute Letter in Position 13

OPTIONS

Voltage Selection Chart:
Substitute Letter in Position 12 | 3.5-Watt, Nominal
  J: 120V/60Hz-110V/50Hz, 3.5-Watt
  L: 24V/60Hz/50z, 3.5-Watt
  M: 6VDC, 2-Watt
  N: 12 VDC, 2-Watt
  P: 24 VDC, 2-Watt
  S: 110 VDC, 3.4-Watt

SPECIFICATIONS AND TECHNICAL DATA

Fluids: Filtered Lubricated or Non-Lubricated Compressed Air
Pressure Range:
  Solenoid w/ Internal Pilot Supply: 20 to 150 PSIG
  Solenoid w/ External Pilot Supply: 10" Hg (vacuum) to 150 PSIG
  Air Pilot Operation: 10" Hg (vacuum) to 150 PSIG
Temperature Range:
  Solenoid Valves: -20 to 120 Degrees Fahrenheit
  Air Pilot Valves: -20 to 160 Degrees Fahrenheit
Average Flow Factor: 5.0 Cv
Minimum Pilot (Operating Pressure):
  Single Solenoid: 40 PSIG
  Double Solenoid, Detent: 30 PSIG
  Double Solenoid, Spring Center: 40 PSIG
Voltages:
  Standard: 120 VAC, 3.5 Watts
  Optional:
    24 VAC: 3.5 Watts
    240 VAC: 7.5 Watts
    12 VDC: 2.0 Watts
    24 VDC: 2.0 Watts
Duty: Continuous at 90 to 105% of Rated Voltage
Coil Type: Class H. Molded w/ 3-Pin Plug-In Connector
Enclosure Classification: NEMA 4 per DIN 40050-IP65
Override: Manual, Non-Locking

MATERIALS OF CONSTRUCTION

  Body: Aluminum
  Spool: Anodized Aluminum
  Seals: Nitrile
  Solenoid Base: PPS Plastic
  Operator Housing: Zinc
