IMI Norgren

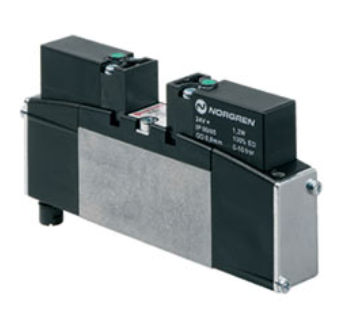

Norgren Valve Islands VS18 & VS26 Series, Plug-In Mini ISO Valves

2 x 3/2, 5/2 and 5/3 Valves

ISO 15407-2
24VDC / 115VAC Multi-Pole
Integrated Field Bus
Field Expandable w/ Single Add-On Stations
Dual Spool Technology
Glandless Spool and Sleeve for Long Life
VS18S Soft-Seal Spool Technology ((Dual 3-Way Only)
Wide Range of Accessories
UL and ATEX
Universal PNP/NPN 24VDC Multi-Pole

Part Number
Volts
OKCancelClear All
Size
OKCancelClear All
Description
OKCancelClear All
Center Position
OKCancelClear All
VS18G517DF318A
120 Volts AC
18mm
Single Solenoid, Two Position, Spring Return
-
VS26G517DF318A
120 Volts AC
26mm
Single Solenoid, Two Position, Spring Return
-
VS18G511DF318A
120 Volts AC
18mm
Double Solenoid Two position
-
VS26G511DF318A
120 Volts AC
26mm
Double Solenoid Two position
-
VS18G611DF318A
120 Volts AC
18mm
Double Solenoid, Three Position, Spring Center
All ports blocked
VS26G611DF318A
120 Volts AC
26mm
Double Solenoid, Three Position, Spring Center
All ports blocked
VS18G711DF318A
120 Volts AC
18mm
Double Solenoid, Three Position, Spring Center
Cylinder ports open to exhaust
VS26G711DF318A
120 Volts AC
26mm
Double Solenoid, Three Position, Spring Center
Cylinder ports open to exhaust
VS18G517DF313A
24 Volts DC
18mm
Single Solenoid, Two Position, Spring Return
-
VS26G517DF313A
24 Volts DC
26mm
Single Solenoid, Two Position, Spring Return
-
VS18G511DF313A
24 Volts DC
18mm
Double Solenoid Two position
-
VS26G511DF313A
24 Volts DC
26mm
Double Solenoid Two position
-
VS18G611DF313A
24 Volts DC
18mm
Double Solenoid, Three Position, Spring Center
All ports blocked
VS26G611DF313A
24 Volts DC
26mm
Double Solenoid, Three Position, Spring Center
All ports blocked
VS18G711DF313A
24 Volts DC
18mm
Double Solenoid, Three Position, Spring Center
Cylinder ports open to exhaust
VS26G711DF313A
24 Volts DC
26mm
Double Solenoid, Three Position, Spring Center
Cylinder ports open to exhaust

* VS18S Soft Seal Spool for High Flow
