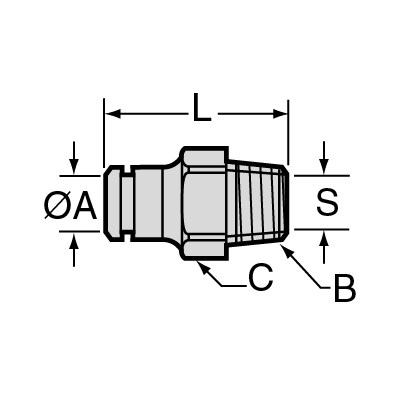

(Inch O.D. Tube to NPT Male Thread)
12-125-0438
1/4”
3/8
0.67
1.01
(4.0)
12-125-0618
3/8”
1/8
0.67
1.25
(5.0)
10-425-0518
5
1/8
7/16”
0.37
0.96
5/32”
10-425-0528
5
1/4
9/16”
0.56
1.04
5/32”
12-225-0405
1/4”
M5
0.43
0.94
0.10
12-225-0418
1/4”
1/8
0.43
0.97
0.16
12-225-0428
1/4”
1/4
0.51
0.93
0.16
12-225-0628
3/8”
1/4
0.67
1.31
0.28
12-225-0738
1/2”
3/8
0.87
1.46
0.39
12-225-0748
1/2”
1/2
0.87
1.37
0.39
Features & Benefits
• Reduced assembly time by eliminating the time consuming
insertion of ferrules and wrenching of compression nuts.
• No tool required for insertion or removal of tubing from fittings.
• All straight male connectors have an internal hex for the use
of an Allen Wrench to allow the fitting to be mounted in any
position. This also permits close porting not possible with a
standard open end or socket wrench.
• Pre-applied thread sealant, Precoat 5, a non-PTFE based
thread sealant, is applied to all tapered male threads.
• Nickel plated brass bodies and collets give a uniform stainless
steel like appearance, does not tarnish like brass and provides
a degree of corrosion resistance.
• Size identification: all collets are marked with O.D. tube size in
fractional inch, millimeters, or both.
• All O-rings used in Pneufit fittings are silicone free, a mandatory
requirement of the automotive and product finishing industry.
