Danfoss (Weatherhead)

Push-On Barbed Hose Ends (Field Attachable 100 "B" Series)

Typical Application: Low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Compatible Hose: H100, H101, H201
Pressure: Determined by maximum working pressure for hose size.
Material: CA360 brass
Advantages: Easy to assemble – just push the fitting onto the hose. No clamps needed! Low cost and a wide selection of configurations and sizes.
Ordering Information: Order individually by catalog number.

Part Number
HOSE I.D.
OKCancelClear All
PIPE SIZE
OKCancelClear All
THREAD SIZE
OKCancelClear All

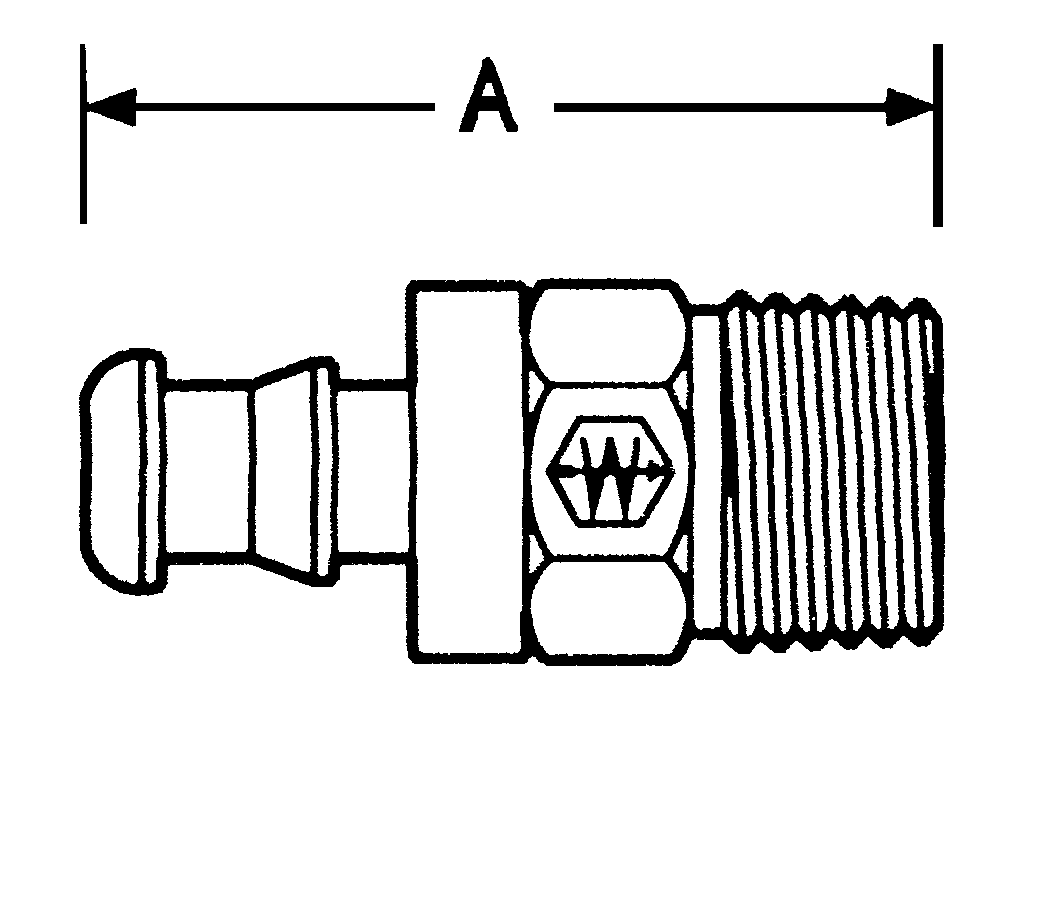

A
OKCancelClear All
10004B-102
1/4
1/8
1/8-27
1.29
10004B-104
1/4
1/4
1/4-18
1.52
10005B-102
5/16
1/8
1/8-27
1.36
10005B-104
5/16
1/4
1/4-18
1.57
10006B-102
3/8
1/8
1/8-27
1.46
10006B-104
3/8
1/4
1/4-18
1.65
10006B-106
3/8
3/8
3/8-18
1.65
10008B-106
1/2
3/8
3/8-18
1.85
10008B-108
1/2
1/2
1/2-14
2.10
10010B-108
5/8
1/2
1/2-14
2.60
10012B-112
3/4
3/4
3/4-14
2.66
10016B-116
1
1
1-11-1/2
3.08
Assembly Instructions: 1. Lubricate insert. 2. Hold hose at angle as shown and push on and up over first barb. 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.) Disassembly Instructions: 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged. 2. Bend hose and remove with quick pull.
