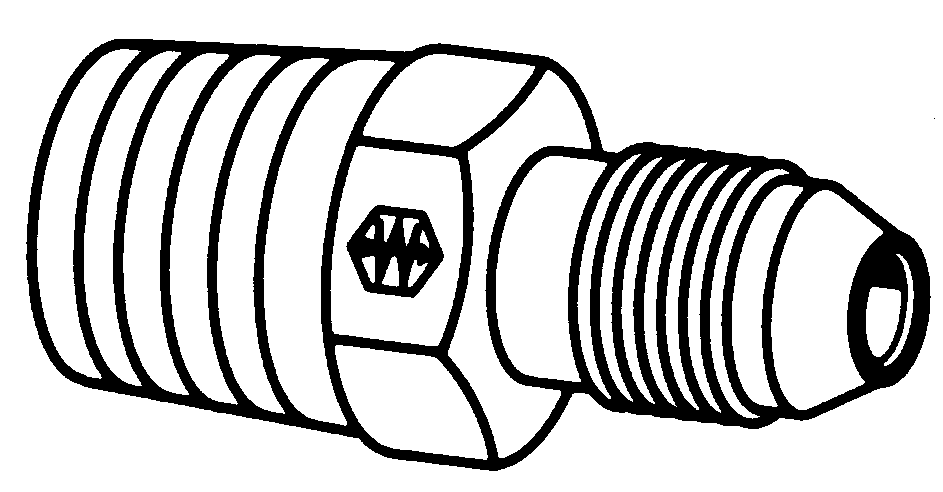

Danfoss (Weatherhead)

Steel BSP Metric Fittings

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

Part Number
JIC TUBE O.D.
OKCancelClear All
BSPT PIPE SIZE
OKCancelClear All

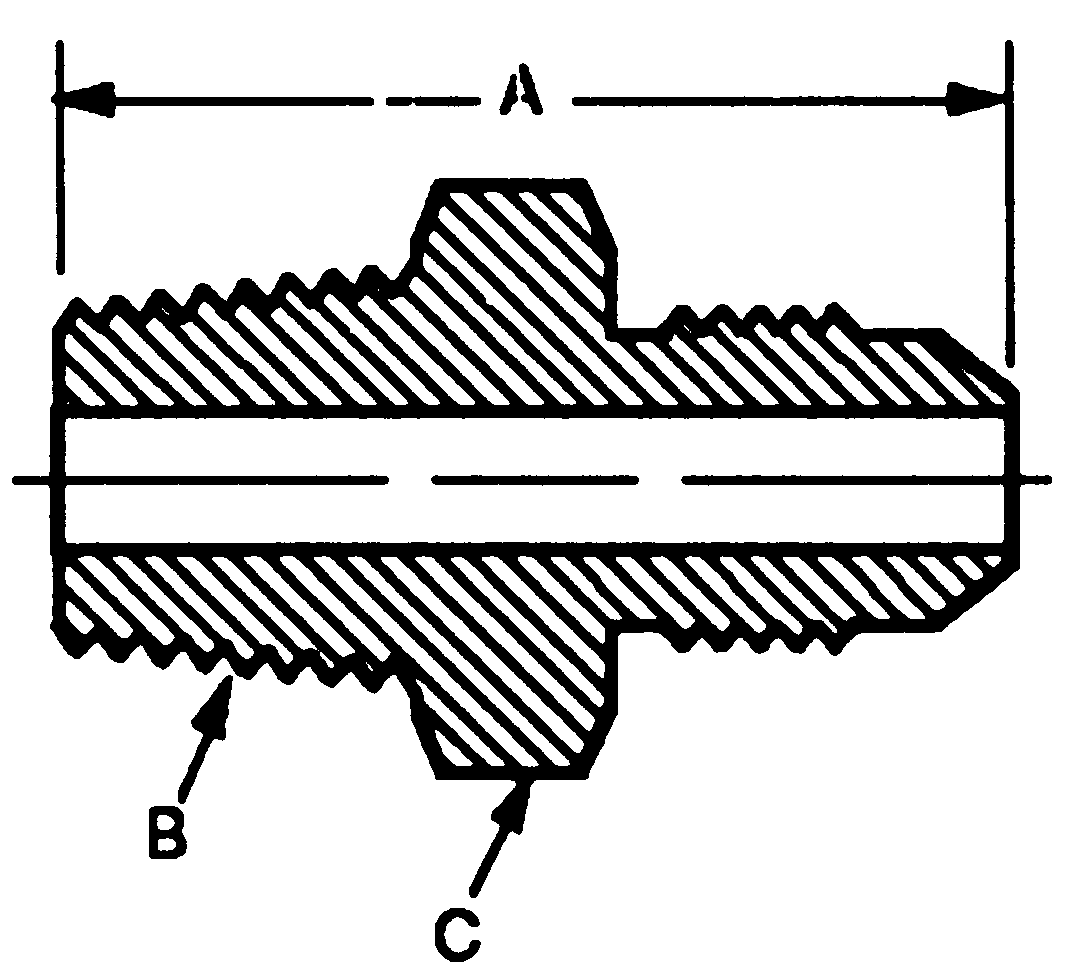

BSPT THREAD B
OKCancelClear All
A
OKCancelClear All
HEX C
OKCancelClear All
MC5205X4X2
1/4
1/8
1/8-28
1.22
1/2
MC5205X4X4
1/4
1/4
1/4-19
1.42
9/16
MC5205X4X6
1/4
3/8
1/4-19
1.42
1/2
MC5205X5X4
5/16
1/4
1/4-19
1.22
9/16
MC5205X6X4
3/8
1/4
1/4-19
1.21
5/8
MC5205X6X6
3/8
3/8
3/8-19
1.29
3/4
MC5205X8X6
1/2
3/8
3/8-19
1.41
13/16
MC5205X8X8
1/2
1/2
1/2-14
1.59
15/16
MC5205X10X8
5/8
1/2
1/2-14
1.66
15/16
MC5205X10X12
5/8
3/4
3/4-14
1.99
1-1/8
MC5205X12X12
3/4
3/4
3/4-14
1.93
1-1/8
MC5205X16X16
1
1
1-11
2.13
1-3/8
MC5205X20X20
1-1/4
1-1/4
1-1/4-11
2.34
1-11/16
MC5205X24X24
1-1/2
1-1/2
1-1/2-11
2.71
1-15/16
