Danfoss (Weatherhead)

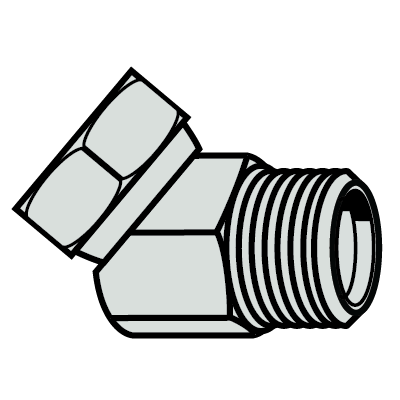

Steel Swivel Adapters

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

Part Number
NPSM SWIVEL NUT
OKCancelClear All
MALE PIPE THREAD
OKCancelClear All
HEX C
OKCancelClear All
L
OKCancelClear All
L1
OKCancelClear All
9355X2X2
1/8-27
1/8-27
9/16
.620
.500
9355X4X2
1/4-18
1/8-27
11/16
.660
.470
9355X4X4
1/4-18
1/4-18
11/16
1.020
.670
9355X4X6
1/4-18
3/8-18
7/8
1.060
.620
9355X4X8
1/4-18
1/2-14
1
1.380
.730
9355X6X4
3/8-18
1/4-18
7/8
1.000
.750
9355X6X6
3/8-18
3/8-18
7/8
1.060
.750
9355X6X8
3/8-18
1/2-14
1
1.060
.750
9355X8X6
1/2-14
3/8-18
1
1.310
.910
9355X8X8
1/2-14
1/2-14
1
1.310
.910
9355X8X12
1/2-14
3/4-14
1-1/4
1.31
.910
9355X12X8
3/4-14
1/2-14
1-1/4
1.500
1.00
9355X12X12
3/4-14
3/4-14
1-1/4
1.500
1.000
9355X12X16
3/4-14
1-11-1/2
1-1/2
1.500
1.030
9355X16X12
1-11-1/2
3/4-14
1-1/2
1.310
1.050
9355X16X16
1-11-1/2
1-11-1/2
1-1/2
1.500
1.060
9355X16X20
1-11-1/2
1-1/4-11-1/2
1-7/8
1.80
1.300
9355X20X20
1-1/4-11-1/2
1-1/4-11-1/2
1-7/8
1.750
1.250
9355X24X24
1-1/2-11-1/2
1-1/2-11-1/2
2-1/8
1.940
1.380

(Ref. SAE No.140330)

Pressure ratings shown are the pressure ratings for the fitting and are not necessarily the pressure ratings applicable in an assembly with hydraulic hose. The applicable pressure rating for an assembly with hydraulic hose is the lower value specified for the hose and the fitting unless otherwise agreed to by the supplier and user.
