Danfoss (Weatherhead)

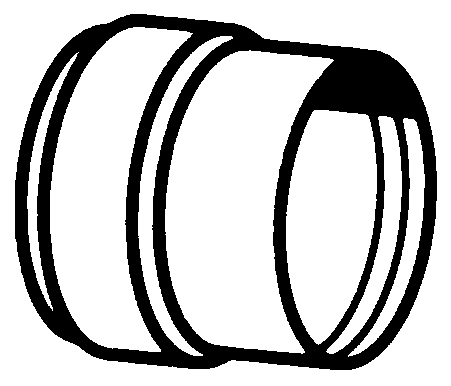

7000 Series Ermeto Steel Fittings

Temperature Range: –65°F to +400°F at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size. Stainless steel has been used at +1000°F and 2000 psi.

Material: Carbon Steel – AISI/SAE 12L14 Plating – Weathercote® Stainless Steel – Bodies and nuts: type 316. Sleeves: 17-4PH. Used With: Aluminum, hard or half copper, steel, stainless steel, monel, titanium and extra heavy wall tubing that cannot be flared. Advantages: An excellent high pressure fitting — NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Label Set: FS-1600 (adhesive)

Part Number
TUBE O.D.
OKCancelClear All

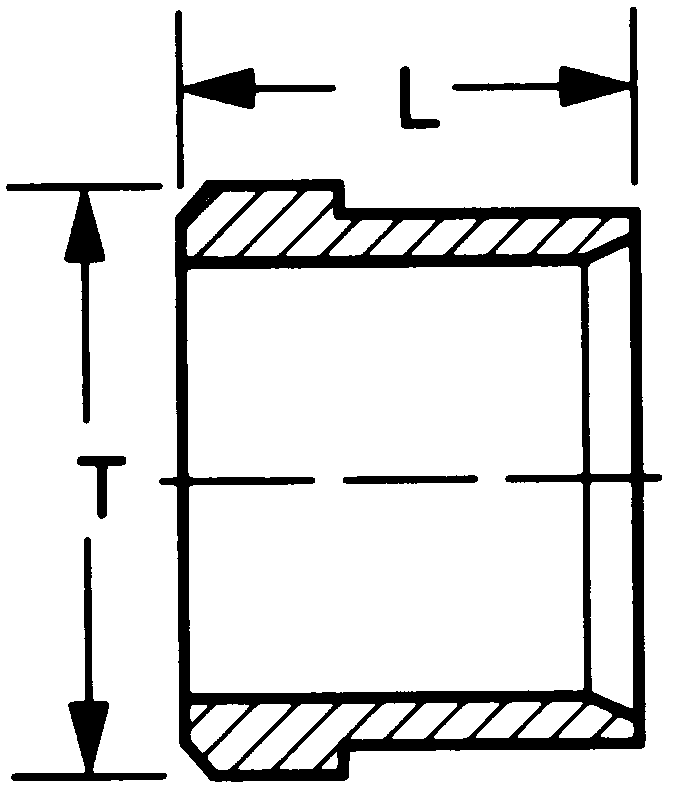

L
OKCancelClear All
DIA. T
OKCancelClear All
7165X2
1/8
.28
.20
7165X3
3/16
.28
.31
7165X4
1/4
.34
.36
7165X5
5/16
.34
.42
7165X6
3/8
.38
.48
7165X8
1/2
.38
.63
7165X10
5/8
.42
.75
7165X12
3/4
.42
.88
7165X14
7/8
.42
1.00
7165X16
1
.42
1.13
7165X20
1-1/4
.42
1.41
7165X24
1-1/2
.42
1.66
7165X32
2
.45
2.19

(Ref. SAE No.080115B) (Ref. MS51825)
