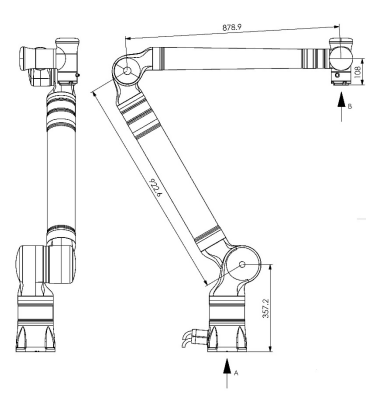

Kassow Collaborative Robot KR1805

Reach [mm] 1800

Operating temperature range [°C] 0-45

Operating humidity [%RH] 30-85 non condensing

Operating Altitude [m] 3000

Weight [kg] 38

AC Power connector 1 Phase CEE

Typical Power consumption (with max load) [W] 400-1200W

Supply voltage [VAC] 100-120 and 200-240 (50/60hz)

Supply current (Pre-fuse requirement) [A] 16

IO power supply [VDC] 24

Digital input max voltage limits [VDC] Max 30V

Max. joint speed [°/s] 163/225

Max. static force on tool flange centre (payload) [kg] 5

Max. static torque on tool flange centre [Nm] 25

Required bed plate flatness [mm/m] 0.5

Sound level [dB] Below 70dB (A)

Ingress protection IP54

Joint ranges [°] Joint 1,3,5,6,7 +/- 360 Joint 2,4 -70/+180

Cable lengths [m] 5m Controller to robot arm 4.5m Controller to Teach Pendant

Footprint [mm] 160 x 160

7 Degrees of Freedom
