Danfoss (Weatherhead)

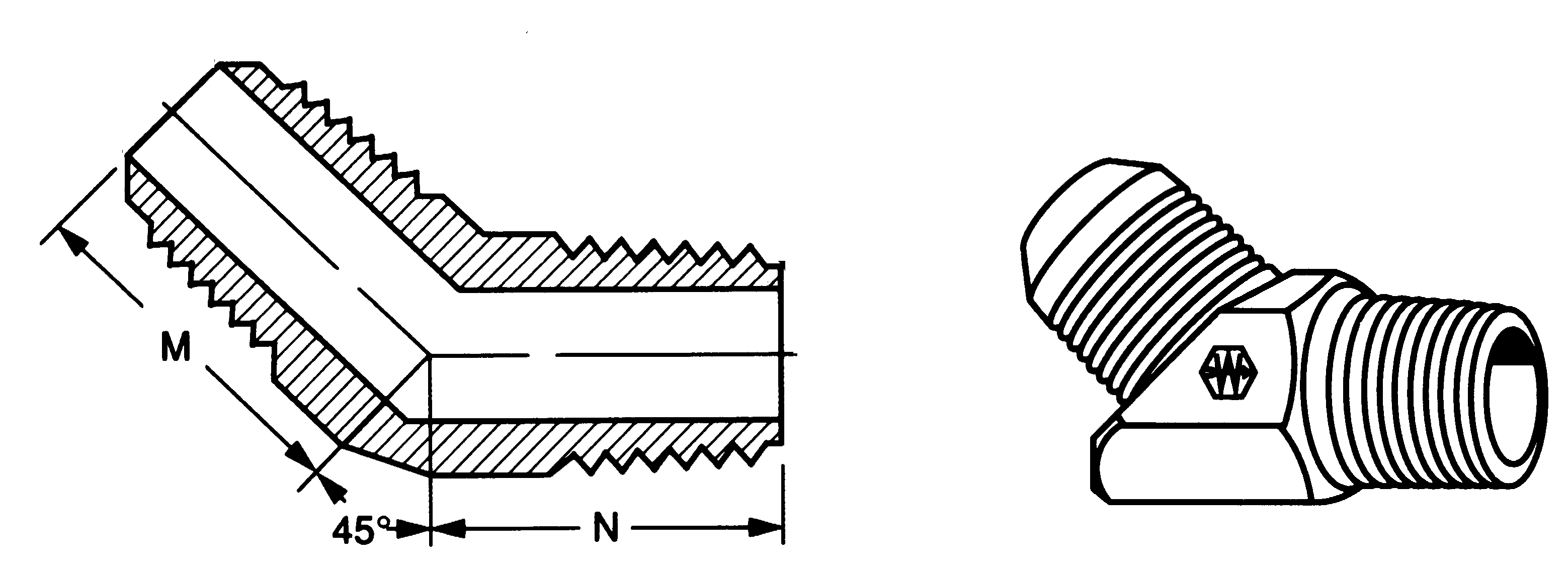

Steel SAE 37°JIC 45° Male Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
MALE PIPE THREAD
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
ACROSS FLATS
OKCancelClear All
C5355X2
1/8
1/8
.66
.52
7/16
C5355X3
3/16
1/8
.66
.52
7/16
C5355X4
1/4
1/8
.72
.64
7/16
C5355X4X4
1/4
1/4
.83
.86
9/16
C5355X5
5/16
1/8
.77
.67
9/16
C5355X5X4
5/16
1/4
.83
.86
9/16
C5355X6X2
3/8
1/8
.83
.69
9/16
C5355X6
3/8
1/4
.83
.86
9/16
C5355X6X6
3/8
3/8
.98
.95
3/4
C5355X6X8
3/8
1/2
1.06
1.17
7/8
C5355X8X4
1/2
1/4
.98
.95
3/4
C5355X8
1/2
3/8
.98
.95
3/4
C5355X8X8
1/2
1/2
.99
1.17
7/8
C5355X10X6
5/8
3/8
1.11
1.00
7/8
C5355X10
5/8
1/2
1.11
1.17
7/8
C5355X12X8
3/4
1/2
1.28
1.20
1-1/16
C5355X12
3/4
3/4
1.28
1.20
1-1/16
C5355X16X12
1
3/4
1.47
1.27
1-5/16
C5355X16
1
1
1.47
1.48
1-5/16
TF5355X2
1/8
1/8
.66
.52
7/16
TF5355X4
1/4
1/8
.72
.64
1/2
TF5355X4X4
1/4
1/4
.81
.86
5/8
TF5355X5
5/16
1/8
.76
.64
9/16
TF5355X5X4
5/16
1/4
.83
.86
5/8
TF5355X6X2
3/8
1/8
.81
.66
5/8
TF5355X6
3/8
1/4
.82
.86
5/8
TF5355X6X6
3/8
3/8
.91
.95
13/16
TF5355X6X8
3/8
1/2
1.03
1.17
15/16
TF5355X8X4
1/2
1/4
.98
.94
13/16
TF5355X8
1/2
3/8
.98
.95
13/16
TF5355X8X8
1/2
1/2
1.12
1.17
15/16
TF5355X10X6
5/8
3/8
1.11
1.06
15/16
TF5355X10
5/8
1/2
1.11
1.17
15/16
TF5355X10X12
5/8
3/4
1.26
1.20
1-1/8
TF5355X12X8
3/4
1/2
1.28
1.17
1-1/8
TF5355X12
3/4
3/4
1.28
1.20
1-1/8
TF5355X12X16
3/4
1
1.42
1.48
1-3/8
TF5355X16X12
1
3/4
1.47
1.28
1-3/8
TF5355X16
1
1
1.47
1.48
1-3/8
TF5355X20
1-1/4
1-1/4
1.59
1.67
1-3/4
TF5355X24
1-1/2
1-1/2
1.78
1.77
2
TF5355X32
2
2
2.22
2.11
2-5/8

Stainless Steel No. 5367X (Ref. SAE No. 070302) (Ref. MS51508)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
