Danfoss (Weatherhead)

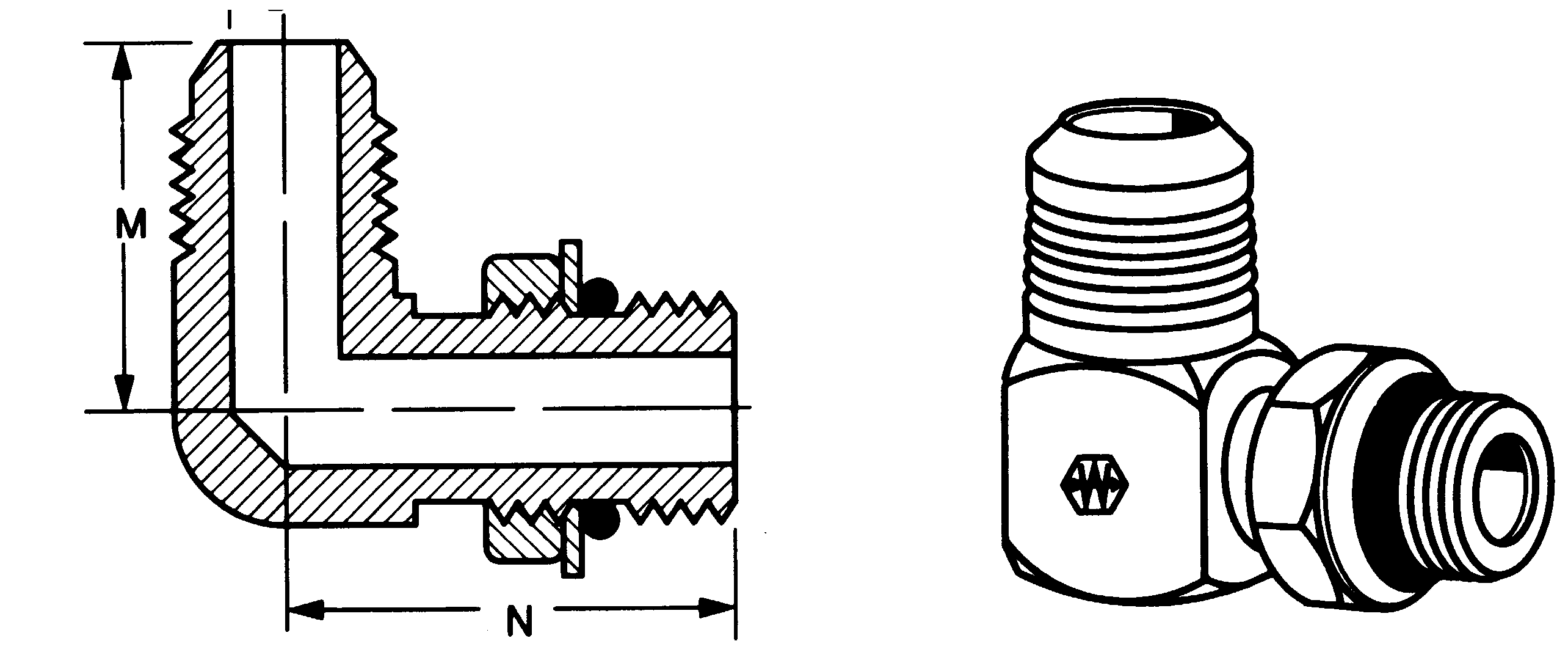

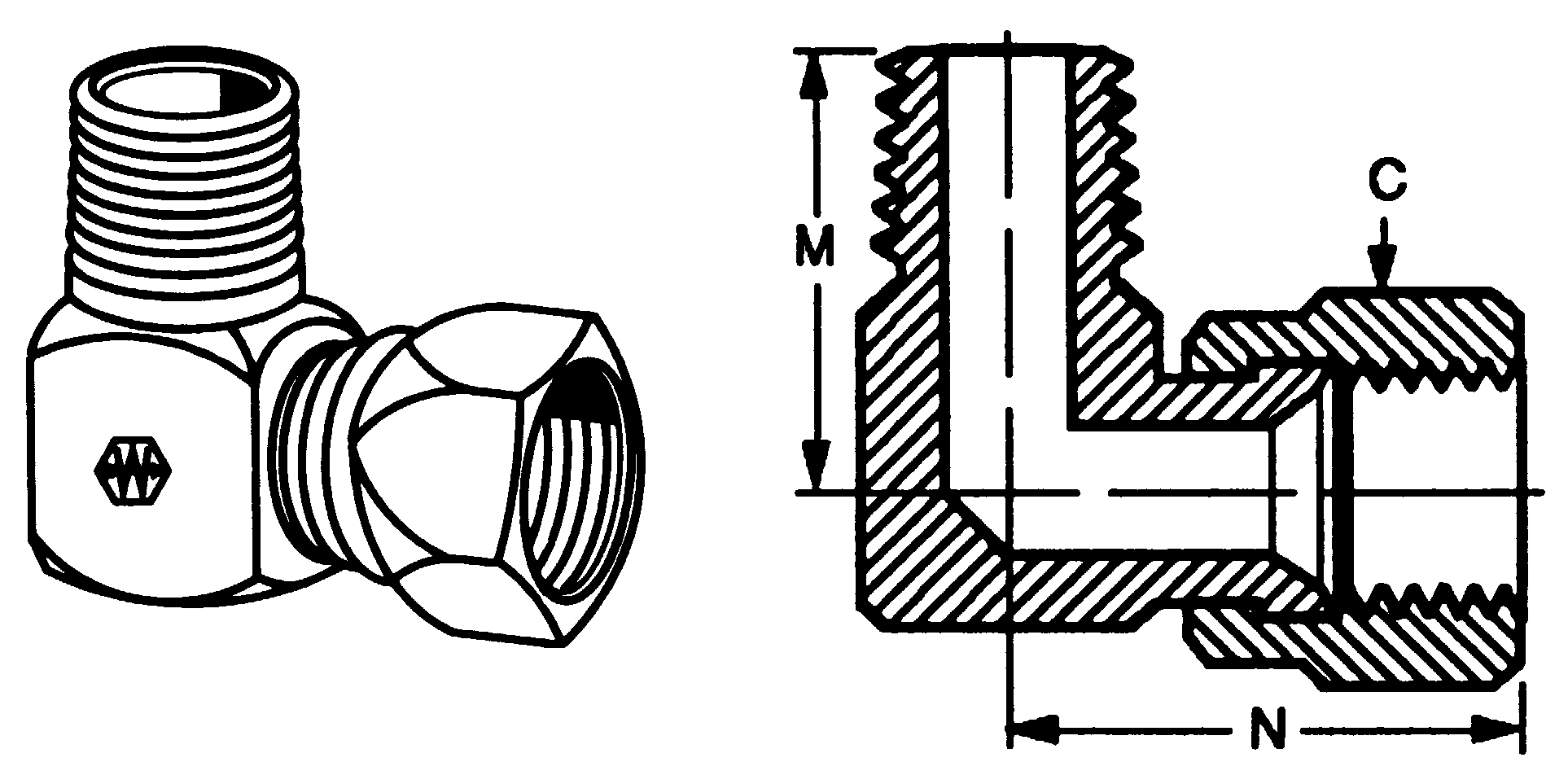

Steel–SAE 37° JIC Straight Thread O-Ring 90° Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
ACROSS FLATS
OKCancelClear All
C5515X4
1/4
1/4
.89
1.03
7/16
C5515X5
5/16
5/16
.95
1.13
9/16
C5515X6
3/8
3/8
1.06
1.25
9/16
C5515X6X8
3/8
1/2
1.14
1.45
3/4
C5515X8X6
1/2
3/8
1.25
1.32
3/4
C5515X8
1/2
1/2
1.25
1.45
3/4
C5515X8X10
1/2
5/8
1.33
1.70
7/8
C5515X10
5/8
5/8
1.45
1.70
7/8
C5515X12X10
3/4
5/8
1.66
1.78
1-1/16
C5515X12
3/4
3/4
1.66
1.94
1-1/16
C5515X16X12
1
3/4
1.81
2.05
1-5/16
C5515X16
1
1
1.81
2.05
1-5/16
C5515X20
1-1/4
1-1/4
2.06
2.25
1-5/8
TF5515X4
1/4
1/4
.89
1.03
1/2
TF5515X4X5
1/4
5/16
.95
1.12
5/8
TF5515X4X6
1/4
3/8
.95
1.25
5/8
TF5515X5X4
5/16
1/4
.98
1.06
9/16
TF5515X5
5/16
5/16
.95
1.09
9/16
TF5515X5X6
5/16
3/8
.98
1.25
5/8
TF5515X6X4
3/8
1/4
1.06
1.09
5/8
TF5515X6X5
3/8
5/16
1.06
1.12
5/8
TF5515X6
3/8
3/8
1.06
1.25
5/8
TF5515X6X8
3/8
1/2
1.16
1.45
13/16
TF5515X6X10
3/8
5/8
1.22
1.70
15/16
TF5515X8X6
1/2
3/8
1.25
1.34
13/16
TF5515X8
1/2
1/2
1.25
1.45
13/16
TF5515X8X10
1/2
5/8
1.31
1.70
15/16
TF5515X8X12
1/2
3/4
1.41
1.94
1-1/8
TF5515X10X8
5/8
1/2
1.45
1.52
15/16
TF5515X10
5/8
5/8
1.45
1.70
15/16
TF5515X10X12
5/8
3/4
1.55
1.94
1-1/8
TF5515X12X8
3/4
1/2
1.66
1.61
1-1/8
TF5515X12X10
3/4
5/8
1.66
1.80
1-1/8
TF5515X12
3/4
3/4
1.66
1.94
1-1/8
TF5515X12X14
3/4
7/8
1.72
2.00
1-1/4
TF5515X12X16
3/4
1
1.78
2.05
1-3/8
TF5515X16X12
1
3/4
1.81
2.06
1-3/8
TF5515X16X14
1
7/8
1.81
2.06
1-3/8
TF5515X16
1
1
1.81
2.05
1-3/8
TF5515X16X20
1
1-1/4
2.00
2.25
1-3/4
TF5515X20X16
1-1/4
1
2.06
2.23
1-3/4
TF5515X20
1-1/4
1-1/4
2.06
2.25
1-3/4
TF5515X24X20
1-1/2
1-1/4
2.33
2.37
2
TF5515X24
1-1/2
1-1/2
2.33
2.39
2
TF5515X32
2
2
3.06
2.89
2-5/8

Stainless Steel No. 5527X (Ref. SAE No. 070220) (Ref. MS51527)

https://catalogs.jhf.com/Pneumatic-and-Hydraulic-Equipment/1217/

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
